Product introduction

The Schneider TM3DQ16R is a digital output module in the Modicon TM3 series, pro

The Schneider TM3DQ16R is a digital output module in the Modicon TM3 series, providing relay output functionality for industrial automation control systems. The following is a detailed description: - **Features**:    - **Multi-channel Output**: Equipped with 16 independent relay output channels, it can simultaneously control multiple external devices. It is suitable for scenarios requiring a large number of relay outputs, such as controlling motors and solenoid valves.    - **High Switching Capacity**: Each channel has a rated output current of 2A and can withstand a maximum voltage of 250V AC or 30V DC, meeting the switching control needs of various high-current loads. - **Electrical Isolation**: Galvanic isolation is implemented between channels and logic circuits. The isolation voltage between outputs and internal logic reaches 2300V AC, the isolation voltage between output channels is 750V AC, and the isolation voltage between output groups is 1500V AC. This effectively protects against electrical noise and interference, ensuring stable system operation. - **Convenient Status Monitoring**: Each output channel is equipped with an LED indicator that displays real-time channel status, facilitating troubleshooting and system maintenance. - **Flexible Installation**: Supports 35mm DIN rail or panel mounting, enabling easy integration into compact control panels and automation systems, saving space and facilitating installation. - **Technical Parameters**: - **Output Type**: Relay (dry contact), normally open (NO) contact type. Power Consumption: Bus-powered, approximately 30mA at 3.3V DC. Switching Time: Approximately 10ms on, approximately 5ms off. Physical Characteristics: Dimensions: Compact, approximately 70mm × 84.6mm × 27.3mm. Weight: Approximately 0.14kg, making it easy to install and transport. Protection Rating: IP20, protecting against intrusion by solid objects larger than 12mm. **Application Areas**: Compatible with Modicon M221, M241, and M251 logic controllers, it is widely used in industrial automation production lines, mechanical equipment control, building automation, and other fields, providing a reliable solution for various occasions requiring relay output control.

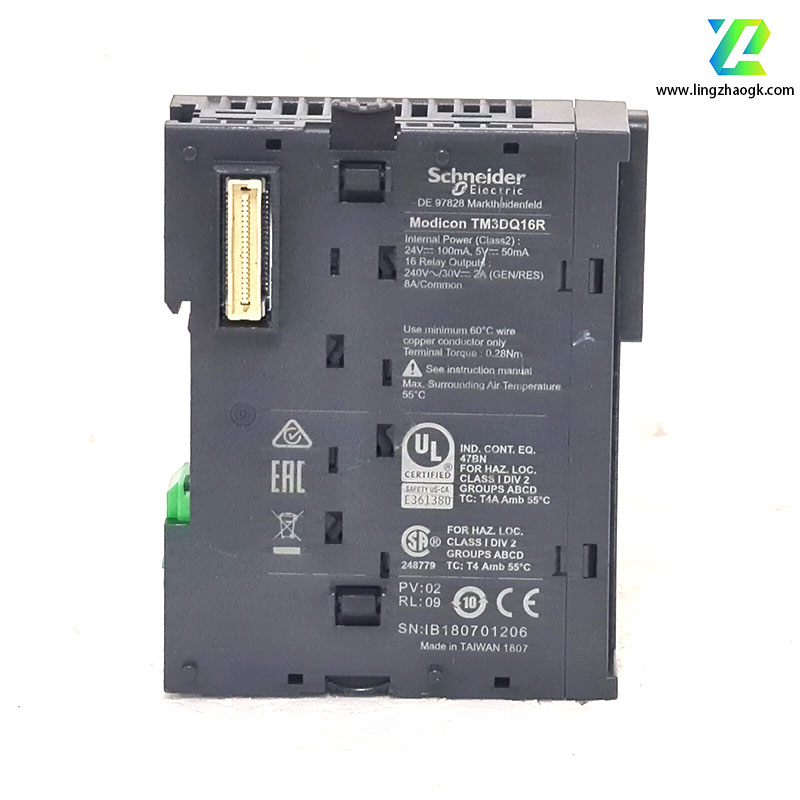

Schneider/Schneider   TM3DQ16R  Digital Output Module

Schneider/Schneider   TM3DQ16R  Digital Output Module
