Product introduction

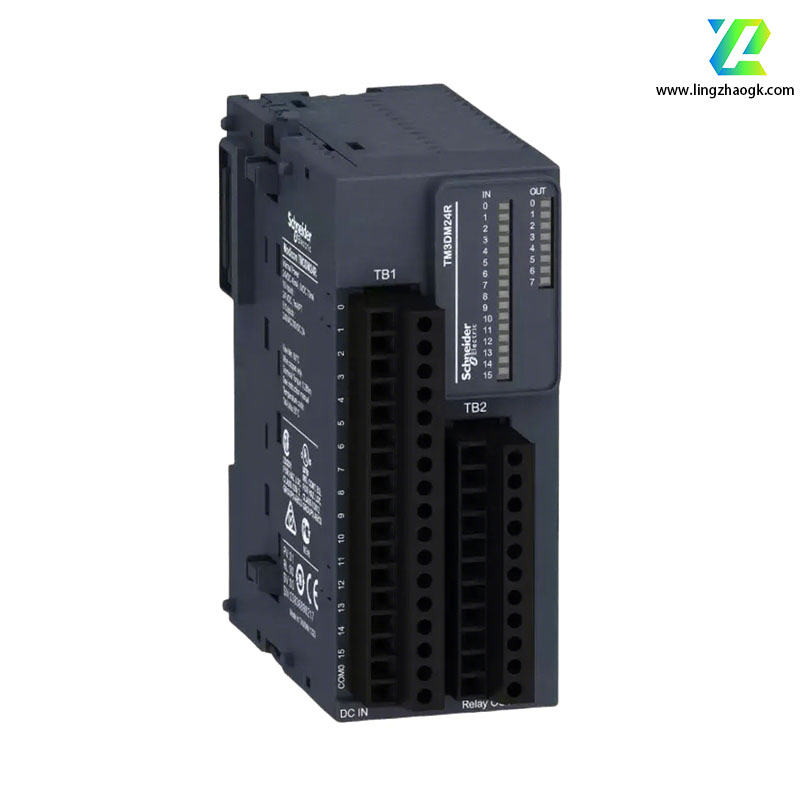

The Schneider TM3DM24R is a digital input/output module in the Modicon TM3 serie

The Schneider TM3DM24R is a digital input/output module in the Modicon TM3 series, offering 24 I/O channels, including 16 digital input channels and 8 digital output channels. The following is a detailed introduction: - **Features**:    - **High-Current Load Control**: 8 relay output channels, each capable of handling up to 2A at 250V AC or 30V DC, reliably switch high-current loads and are suitable for demanding industrial environments.    - **Electrical Isolation Protection**: Each relay output is individually isolated, effectively preventing electrical faults, protecting the module and connected devices, and enhancing system stability and reliability.    - **Real-Time Status Feedback**: Each output relay features an integrated LED status indicator, providing real-time output status feedback for quick troubleshooting and maintenance. - **Compact Design**: The compact design seamlessly integrates into existing TM3 Series configurations, saving control cabinet space while maximizing functionality. - **Wide Operating Temperature**: The operating temperature range is -20°C to 60°C, ensuring reliable operation in a variety of industrial environments. - **Technical Parameters**: - **Input Parameters**: The input voltage is 19.2V to 28.8V DC, the input current is 7mA (when the signal is 1), and the input logic is source or sink, complying with the IEC 61131-2 Type 1 input. - **Output Parameters**: The output voltage range is 30V to 264V AC/DC, the output current is 2A, and the output type is a normally open relay. Other Parameters: Signal change delay time is 4ms to 10ms, the power supply voltage is 24V DC, screw connections are used, and the protection level meets IP20 standards. Applications: Industrial Automation: Provides reliable on/off control for mechanical equipment, such as controlling the start and stop of production lines and the operation of motors. Building Automation: Controls building management systems such as lighting and HVAC systems, enabling intelligent control of building equipment. Process Control: Helps achieve precise control in manufacturing and process industries, such as valve opening and closing in chemical production and material conveying equipment.

Schneider/Schneider   TM3DM24R  Digital Input and Output Module

Schneider/Schneider   TM3DM24R  Digital Input/Output Modules
