Product introduction

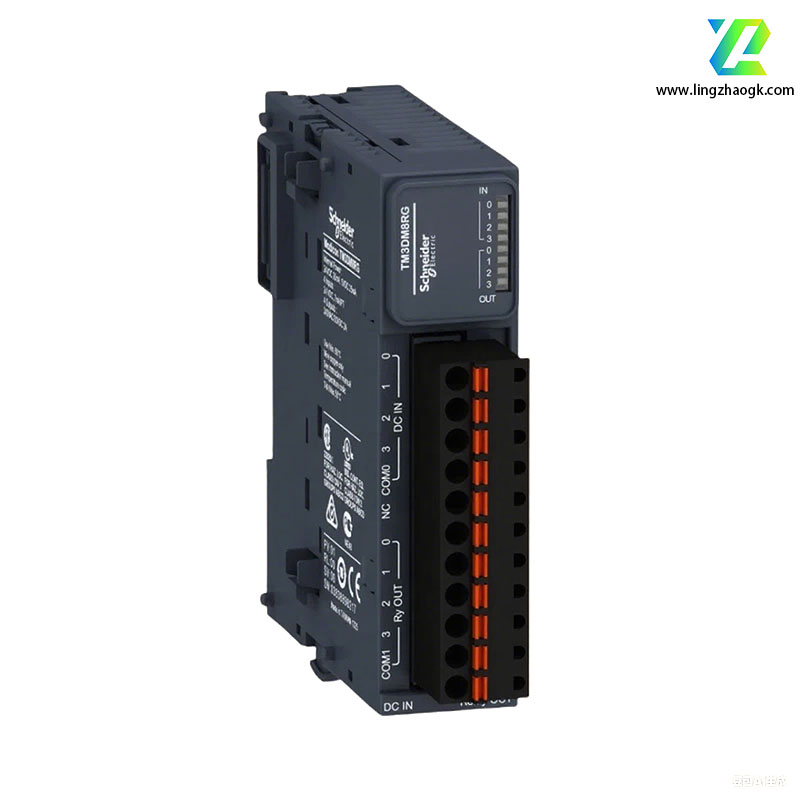

The Schneider TM3DM8RG is a digital input/output module in the Modicon TM3 serie

The Schneider TM3DM8RG is a digital input/output module in the Modicon TM3 series. The following is a detailed introduction: - **Features**    - **Rich I/O Channels**: It features 4 digital input channels and 4 digital output channels, meeting the digital signal input and output requirements of various industrial control scenarios.    - **Flexible Logic Type**: The input logic type is sink/source, allowing you to select either source or sink input according to actual needs, facilitating connection to various external devices.    - **Relay Output**: Each relay output channel can handle 2A of current and operates reliably at 24V DC or 240V AC. It can be used to control various AC/DC loads, such as motors, solenoid valves, and indicator lights. - **Electrical Isolation**: 500V AC isolation is used between the input and internal logic, and 1500V AC isolation is used between the input and output groups. This effectively prevents external interference signals from entering the system, improving the module's stability and reliability. - **Technical Parameters** - **Input Parameters**: Rated input voltage is 24V DC, with an input voltage range of 19.2V to 28.8V DC, rated input current is 7mA, and input impedance is 3.4kΩ. - **Output Parameters**: Rated output voltage is 24V DC, 240V AC, maximum voltage is 30V DC, 264V AC, minimum switching load is 5V DC, 10mA, and rated output current is 2A. - **Other Parameters**: Connections are made using removable spring terminal blocks, with connector plugging and unplugging durability exceeding 100 cycles. On the 5V DC internal bus, current consumption is 24mA when all inputs and outputs are on, and 5mA when all are off. On the 24V DC internal bus, current consumption is 20mA when all inputs and outputs are on, and 0mA when all are off. - **Physical Characteristics** - **Mounting Method**: Supports standard 35mm DIN rail mounting or panel mounting using a fixing kit, providing convenient and space-saving installation. - **Dimensions and Weight**: Approximately 27.4mm wide, 90mm high, 84.6mm deep, and weighing approximately 95g, its compact size makes it easy to install in various control cabinets. - **Application Areas** - **Industrial Automation**: Widely used for automated control of various industrial production processes, such as production line start/stop control and equipment status monitoring and control. - **Building Automation**: Can be used to control building lighting systems, air conditioning systems, access control systems, and more, enabling intelligent building management. - **Mechanical Equipment Control**: Used in various mechanical equipment to control motor operation, valve opening and closing, and sensor signal acquisition, ensuring normal operation.

Schneider/Schneider    TM3DM8RG     Digital input and output module

Schneider/Schneider    TM3DM8RG     Digital Input and Output Module
