Product introduction

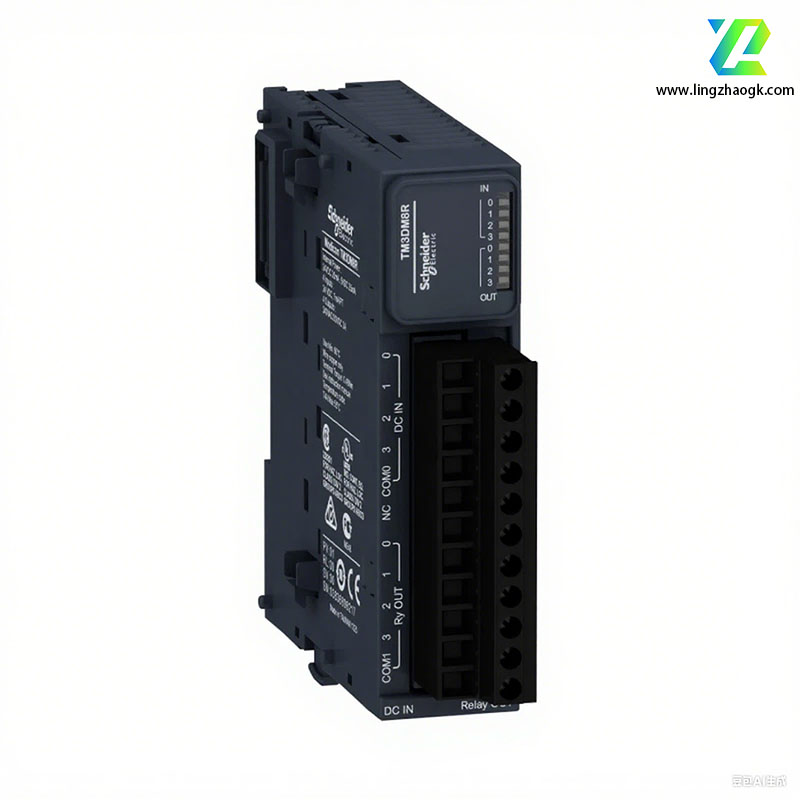

The Schneider TM3DM8R is a digital input/output module in the Modicon TM3 series

The Schneider TM3DM8R is a digital input/output module in the Modicon TM3 series, primarily used in industrial automation control systems for digital signal processing and control. The following is a detailed introduction: - **Features**:    - **Rich I/O Channels**: It features four digital input channels and four digital output channels, which can be used to receive switching signals from external devices and control actuators such as relays.    - **Relay Output**: Each relay output channel can handle 2A of current and operate reliably at 250V AC. It supports AC and DC load switching and is suitable for a variety of load types.    - **Configurable Input Function**: The input channels feature configurable filtering to increase signal acquisition speed or reduce noise impact. They also feature a configurable latching function to capture pulse signals shorter than the controller scan time. In addition, a fault fallback mode can be configured to set the output to a specific state (0/1/hold) in the event of a hardware fault. - **Electrical Isolation**: The module provides excellent electrical isolation between the control circuitry and the output relays, enhancing system protection and reducing the risk of electrical interference. - **Diagnostic Function**: Integrated diagnostic functions provide real-time feedback on module status and operating conditions, assisting with preventive maintenance, identifying potential problems promptly, and reducing downtime. - **Technical Parameters**: - **Input Voltage**: The allowable input voltage is 19.2V to 28.8V DC. The current drawn when the input signal is 1 is approximately 7mA. - **Output Voltage**: The output voltage range is 30V to 264V, supporting both AC and DC power supplies. - **Signal Conversion Delay**: The signal change delay is 4ms to 10ms. - **Operating Temperature**: The operating temperature range is -10°C to +55°C, adapting to certain temperature fluctuations in industrial environments. - **Physical Characteristics**: - **Mounting**: Can be mounted on a 35mm DIN rail or directly on a control cabinet panel, offering flexible installation options. - **Dimensions**: Approximately 27.4mm wide, 90mm high, and 84.6mm deep, the compact design saves space in the control cabinet. - **Wiring**: Removable screw terminals with a 5.08mm pitch are used for easy wiring and maintenance. **Application Areas**: Suitable for industrial automation, building management systems, and mechanical equipment control. It seamlessly integrates with Schneider's Modicon M221 and M241 controllers, and is also compatible with third-party controllers via the Modicon TM3 bus coupler.

Schneider/Schneider   TM3DM8R   Digital Input and Output Module

Schneider/Schneider   TM3DM8R   Digital Input and Output Module
