Product introduction

Bently Nevada The 330106-05-30-90-02-00 is an 8mm reverse-mount eddy-current pro

Bently Nevada The 330106-05-30-90-02-00 is an 8mm reverse-mount eddy-current probe in the 3300 XL series. The following is a product overview: - **Product Type**: 8mm reverse-mount eddy-current probe. - **Main Function**: Used to measure parameters such as shaft vibration, shaft displacement, key phase, and rotational speed. Through the eddy current effect and electromagnetic field modulation, mechanical vibration, displacement, rotational speed, and other physical quantities are converted into electrical signals, enabling detection of the health status of rotating machinery and early warning of faults. - **Technical Parameters**: - **Measurement Range**: Linear range of 2mm (80mils), sensitivity of 8mV/μm, and resolution of 0.1μm. - **Mounting Thread**: M10 x 1 thread. - **Cable Length**: Total length is 9 meters. - **Connector Type**: Miniature ClickLoc coaxial connector. - **Protection Rating**: Fully sealed stainless steel housing, IP67 rated, resistant to high-pressure water washdowns and chemical corrosion. - **Operating Temperature**: Utilizing a phosphor bronze bobbin and high-temperature ferrite core, coupled with an air/ceramic dual-insulated package, the sensor maintains ±1% full-scale accuracy at 350°C. - **Applications**: Widely used in the power, petroleum, chemical, and metallurgical industries, including condition monitoring of rotating machinery such as turbines, compressors, and fans. - **Features**: Utilizing high-frequency eddy current detection principles, the sensor features a triple-interference mitigation design, including shielded cable and differential signal transmission at the hardware level, adaptive digital filtering at the algorithm level, and a fully sealed stainless steel housing at the structural level. In addition, it is equipped with a self-learning algorithm that establishes a baseline vibration feature library to provide early warning of minor abnormal changes, with a fault identification accuracy rate of over 95%.

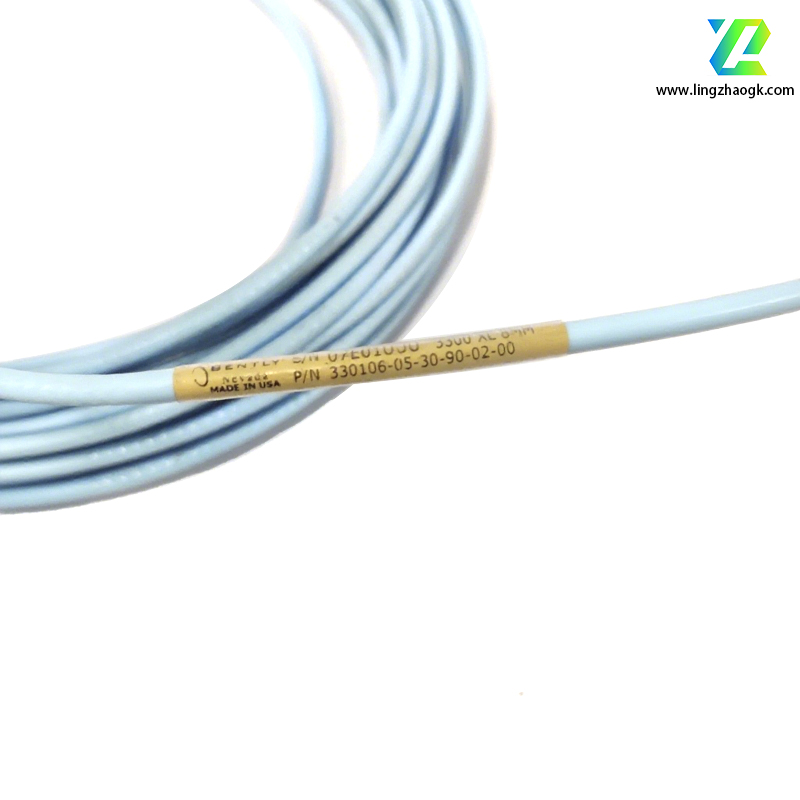

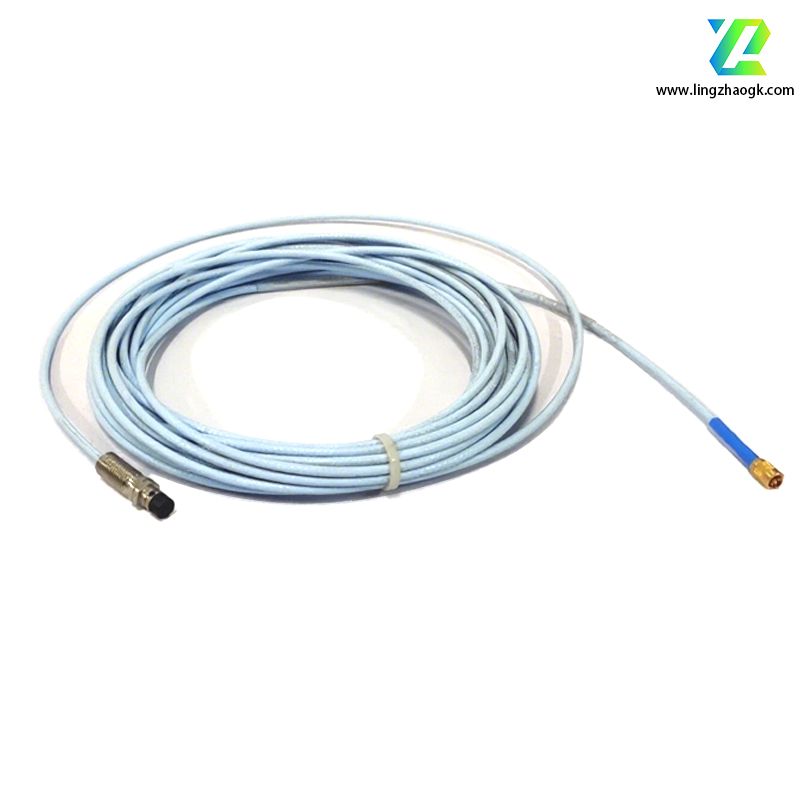

Bently Nevada 330106-05-30-90-02-00 Reverse Mount Eddy Current Probe

Bently Nevada 330106-05-30-90-02-00 Reverse Mount Eddy Current Probe
