Product introduction

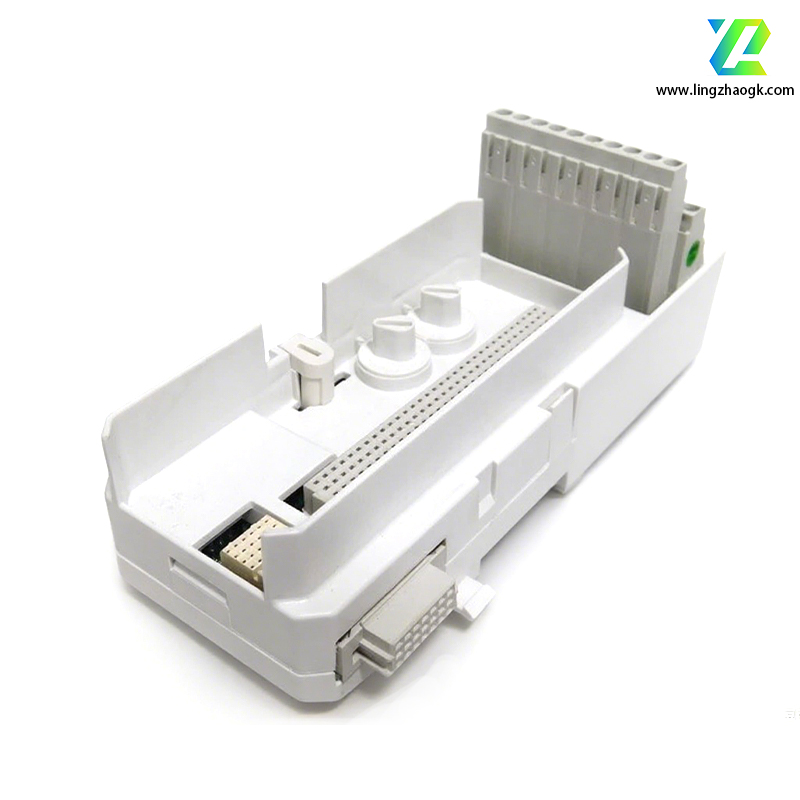

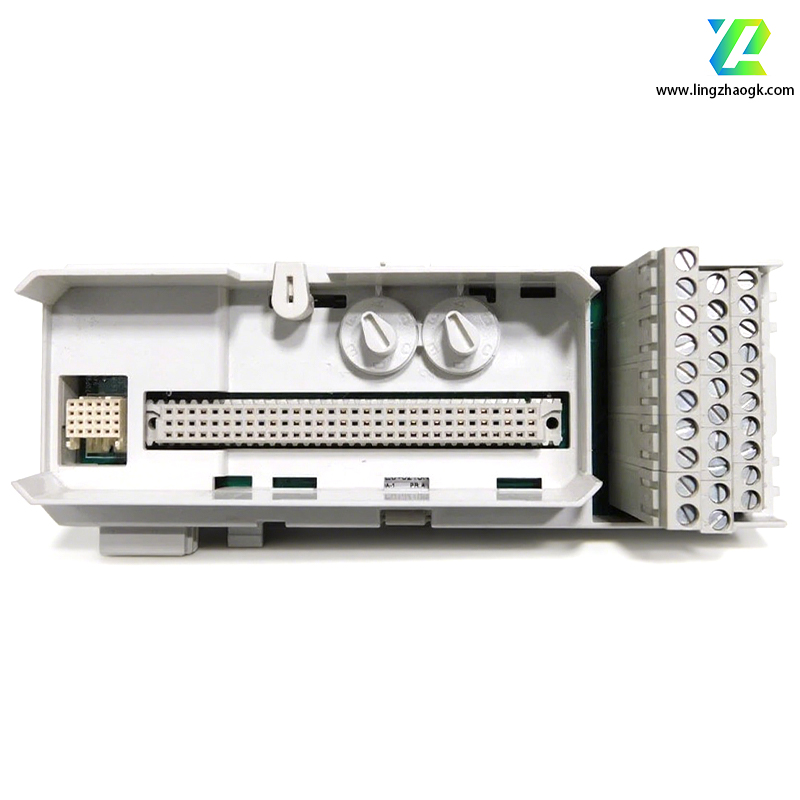

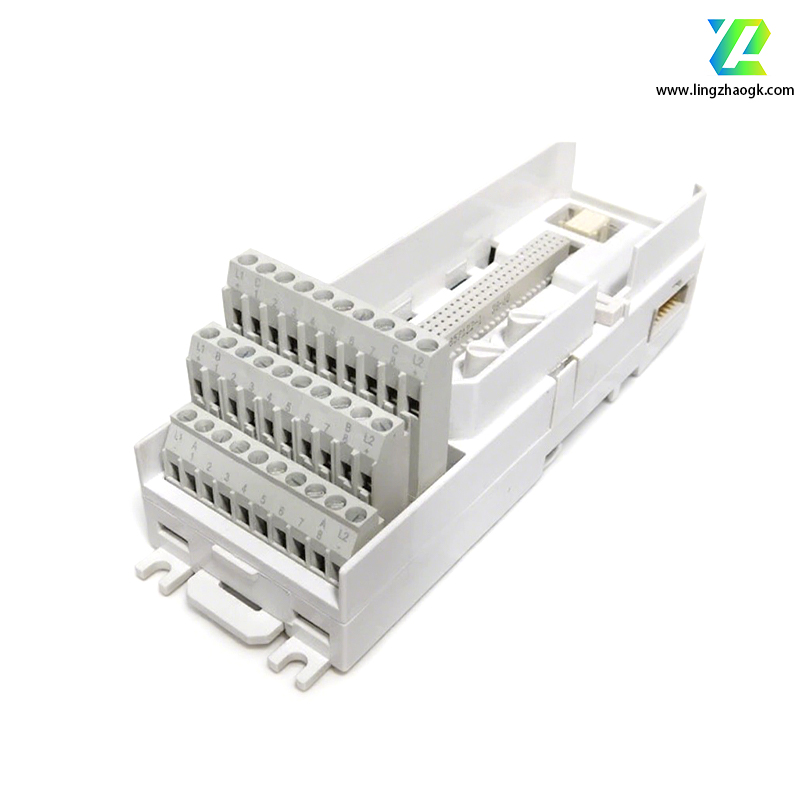

TU810V1 3BSE013230R1 is a compact module termination unit produced by ABB. Here

TU810V1 3BSE013230R1 is a compact module termination unit produced by ABB. Here is its detailed English introduction:   ### Basic Information - **Brand**: ABB   - **Model**: TU810V1 3BSE013230R1   - **Type**: Compact Module Termination Unit (MTU)   - **Application**: It is mainly used for signal termination and connection in industrial automation systems, applicable to PLC and DCS systems, etc.   ### Technical Parameters   - **Channels**: It has 16 channels, which can support up to 16 digital signals (dry or wet contacts, 24V DC) or 8 analog signals (0-10V/4-20mA). - **Working Voltage**: 24V DC, supporting a wide power supply range of 18-32V DC. - **Rated Isolation Voltage**: 50V DC (isolation between channels).   - **Dielectric Test Voltage**: 500V AC (channel to ground isolation). - **Mechanical Life**: More than 5000 plugging cycles without contact wear. - **Operating Temperature**: From -20°C to +60°C.   - **Humidity Range**: 5% to 95%, non-condensing.   - **Protection Class**: IP20, suitable for DIN rail installation and requiring protection by a power distribution cabinet.   - **Certification**: Complies with CE, UL, IEC 61326 and other relevant industrial anti-interference certifications.   ### Structural Features   It has a double mechanical key design, each key having 6 positions, enabling 36 different configurations to prevent incorrect insertion of different types of I/O modules. Besides, it can allocate ModuleBus to I/O modules and the next MTU, and generates the correct address of I/O modules by shifting the outgoing position signal to the next MTU. ### Communication Capability   Its communication interface supports S800 I/O bus, PROFIBUS DP protocol, etc., which can enhance system flexibility and compatibility. style="max-width:100%!important;height:auto!important;" src="/uploads/allimg/20250724/1-250H4142I1Z0.jpg" alt="3.jpg"/>

ABB TU810V1 3BSE013230R1 16-channel 50V compact module is in stock.

ABB TU810V1 3BSE013230R1 16-channel 50V compact module is in stock.

We have the discontinued spare parts you urgently need!

A complete range of models and sufficient stock! Spot goods will be shipped immediately, and the price is favorable!
