Product introduction

MTL SD07R is a surge protector produced by MTL Instruments and belongs to the SD series. The following is a detailed introduction: - **Functions**: It adopts multi-stage hybrid protection circuit, with maximum surge protection of

MTL SD07R is MTL This surge protector, part of the SD series, is manufactured by Instruments. The following is a detailed introduction: - **Features**: It utilizes a multi-stage hybrid protection circuit with a maximum surge current of 20kA (8/20μs). It features high bandwidth and low resistance, and is available in RTD, PSTN, and 3-wire transmitter versions. - **Protection Circuit**: Each module provides comprehensive hybrid surge protection for two-wire or three-wire circuits. - **Operating Voltage**: The nominal DC operating voltage is 7V, the AC nominal voltage is 5V, and the nominal current is 700mA. - **Signal Frequency**: The signal frequency range is 0-50MHz, offering a high bandwidth, meeting applications with demanding signal transmission requirements. - **Mounting Method**: It securely clips onto a standard 35mm DIN rail with a simple manual operation and automatically establishes a reliable ground connection. - **Applications**: ATEX-certified, this intrinsically safe surge protector is suitable for use in hazardous locations. It can be used to protect process equipment, I/O systems, and communication networks, meeting the needs of a variety of process I/O applications. - **Product Size**: Featuring an ultra-thin design and compact size, it takes up minimal space, enabling high packaging density and also doubles as a feedback terminal. - **Other Features**: An optional "loop disconnect" function facilitates commissioning and maintenance, allowing operations to be performed without removing the surge protector. Furthermore, this product comes with a 10-year warranty.

src="/uploads/allimg/20250722/1-250H21522303V.jpg" alt="WeChat Picture_20250721110111_20.jpg"/>

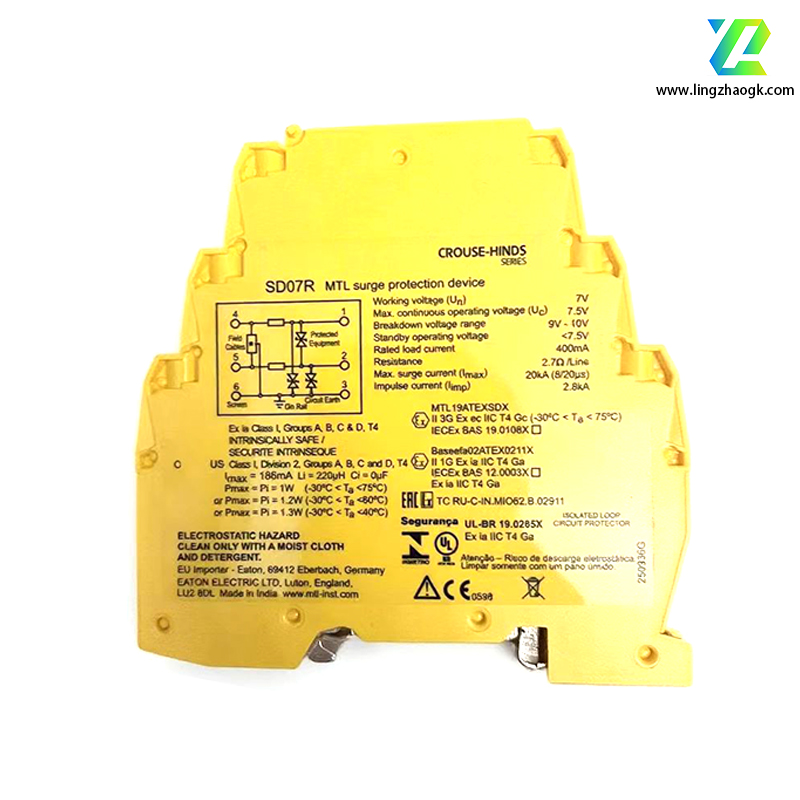

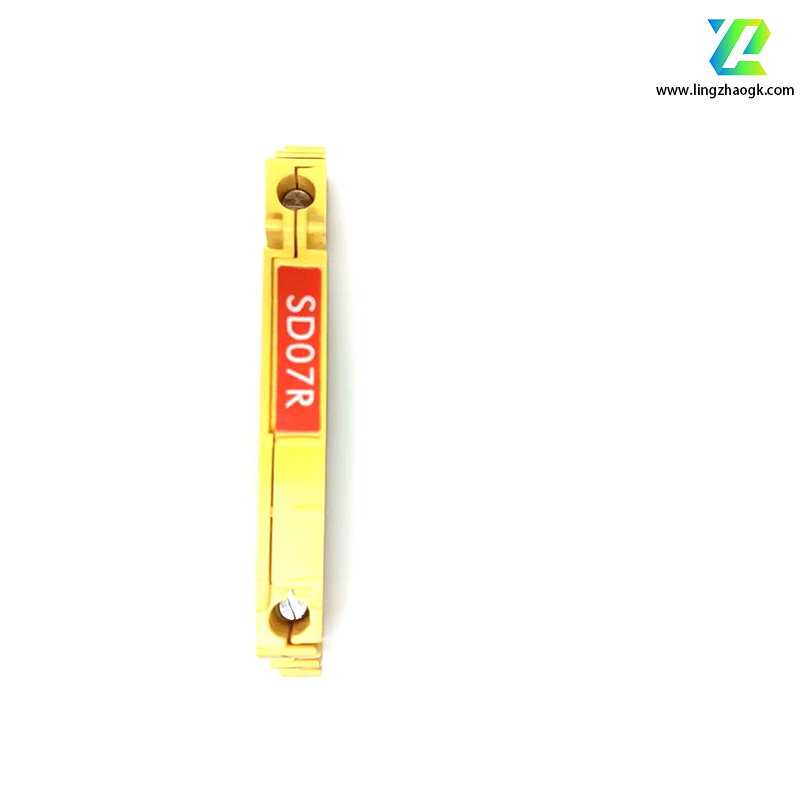

MTL Safety Barrier/Eaton Safety Barrier SD07R Surge Protector

MTL Safety Barrier/Eaton Safety Barrier SD07R  Surge Protector

We have the discontinued spare parts you need here,

Complete models, sufficient stock! Spot delivery within seconds, great prices!
