Product introduction

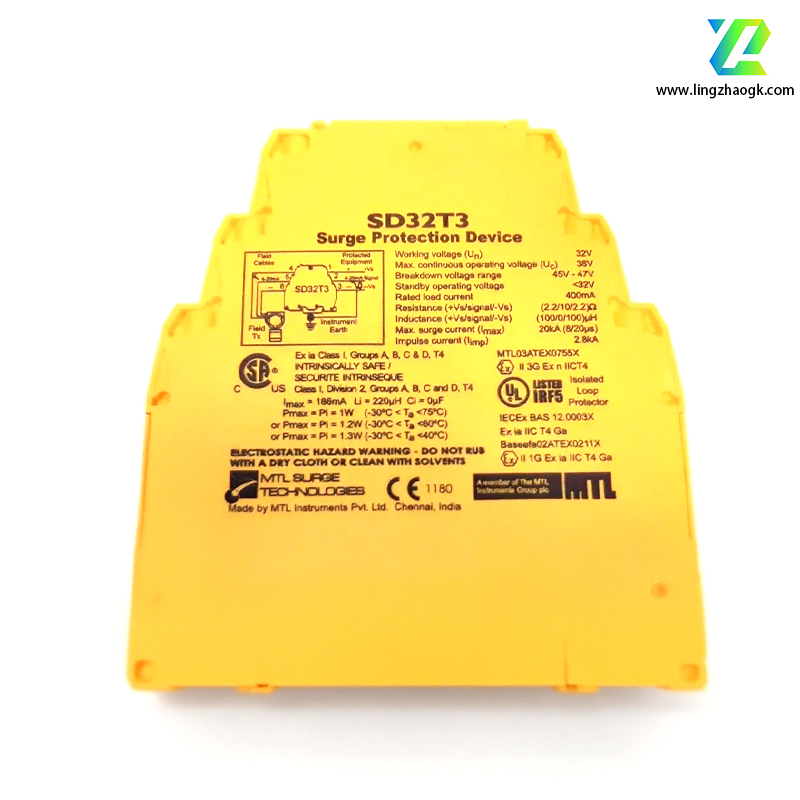

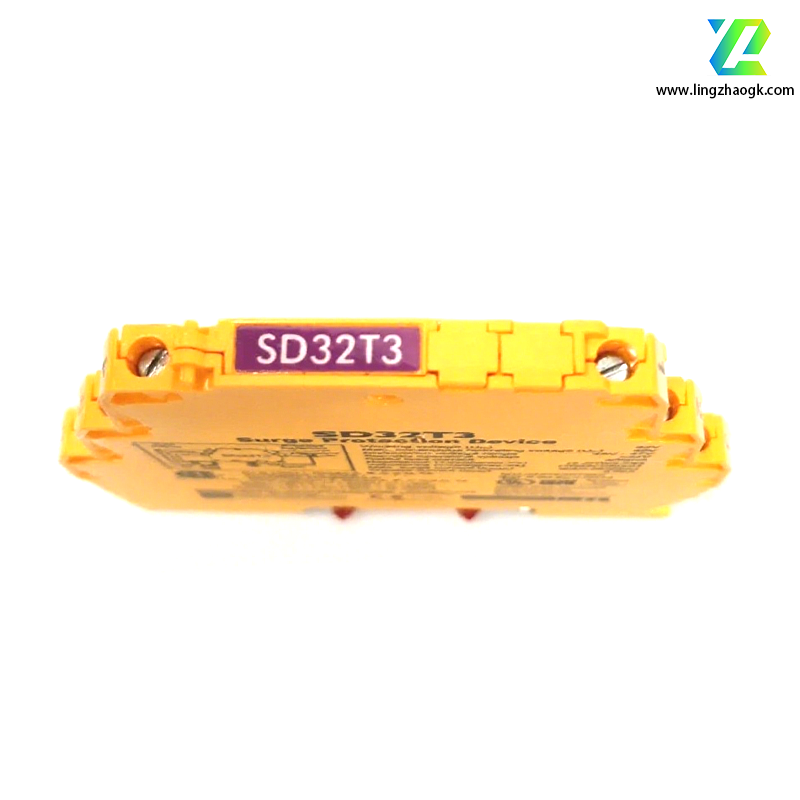

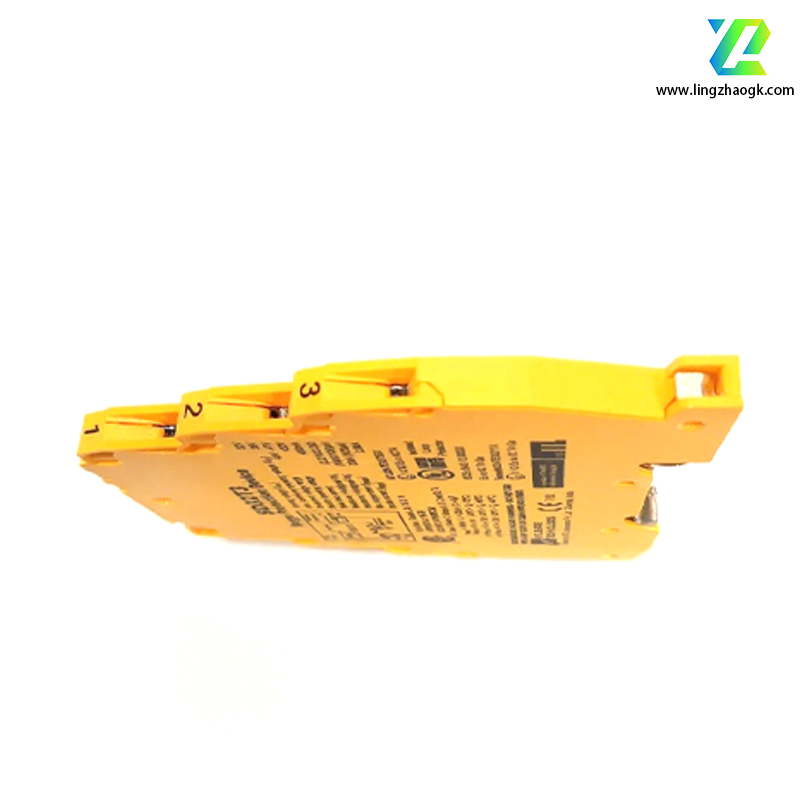

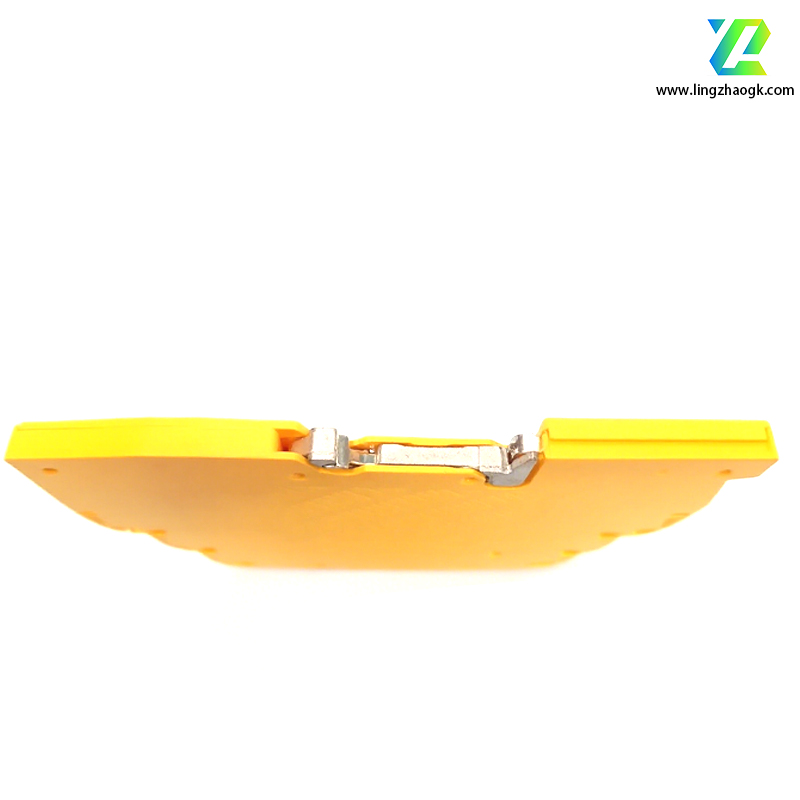

MTL SD32T3 is a surge protector produced by MTL Instruments and belongs to the SD series. The following is a detailed description: - **Functions**: It adopts multi-stage hybrid protection circuit, with a maximum

MTL SD32T3 is MTL This surge protector, part of the SD series, is manufactured by Instruments. The following is a detailed introduction: - **Features**: It utilizes a multi-stage hybrid protection circuit with a maximum surge current of up to 20kA, effectively protecting electronic equipment and systems from surges on signal and I/O cables. It features high bandwidth and low resistance, and is suitable for RTD, PSTN, and three-wire transmitters. It utilizes advanced arc extinguishing technology to prevent fires, has built-in thermal protection, and features a power status indicator to display the surge protector's operating status. - **Protection Circuit**: It is primarily designed to protect three-wire instrument process control circuits and provides complete three-wire protection for three-wire transmitters or sensors. - **Operating Voltage**: It has a nominal DC voltage of 32V, an AC voltage of 22V, and a nominal current of 400mA. - **Mounting Method**: It uses standard DIN rail mounting for easy installation. - **Applications**: It is ATEX and IECEx certified, suitable for SIL3 circuits, and can be used in hazardous locations. - **Product Size**: Featuring an ultra-thin, modular design and a compact structure of only 7mm in width, it saves cabinet space and achieves high packaging density. - **Other Features**: A "make-before-break" function ensures uninterrupted signal flow during module removal. It is also backward compatible with the popular MTL SD series, facilitating upgrades.

MTL Safety Barrier/Eaton Safety Barrier SD32T3  Surge Protector

MTL safety barrier/Eaton safety barrier SD32T3  Surge Protector

We have the discontinued spare parts you need right here.
