Product introduction

MTL IOP HC32 is a surge protector produced by MTL Instruments and belongs to the Crouse-Hinds series. The following is a detailed introduction:- **Functions**:

MTL IOP HC32 is MTL This surge protector, manufactured by Instruments, belongs to the Crouse-Hinds series. Here's a detailed description: - **Features**: Utilizes a hybrid protection circuit, including a 20kA gas discharge tube and solid-state components, to safely direct surges to ground and then automatically reset, ensuring equipment is protected from damaging surges between lines or between a line and ground. - **Protection Circuit**: Designed to provide surge protection for a high-current circuit, suitable for applications with load currents up to 5A, including circuits driving solenoids, relays, and actuators. - **Electrical Parameters**: Maximum surge current is 20kA per line (8/20μs waveform), leakage current is less than 1μA at the operating voltage, maximum rated load current is 5A, and loop resistance is 0 ohms. - **Operating Environment**: Operating and storage temperature range is -40°C to +80°C, and humidity range is 5% to 95% RH (non-condensing). - **Mounting Method**: Securely clips onto a DIN rail with a simple manual operation. Removable terminals facilitate installation and maintenance. Circuits can be disconnected by unplugging the terminals from the side of the module. - **Product Certification**: ATEX and FM certified for use in hazardous locations. - **Dimensional Features**: Each circuit is 12mm wide, providing a high packing density and space-saving performance.

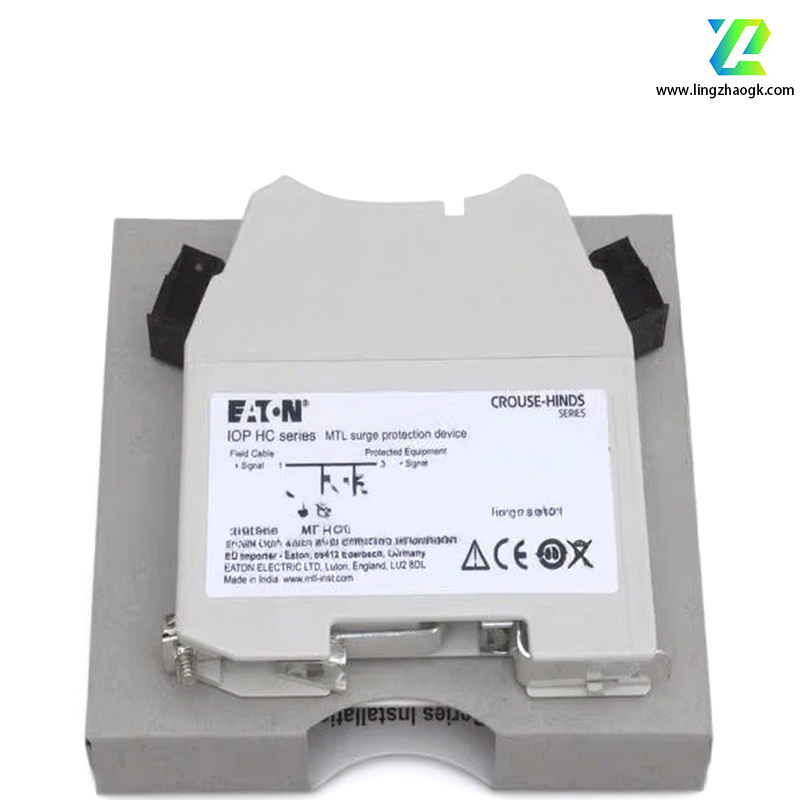

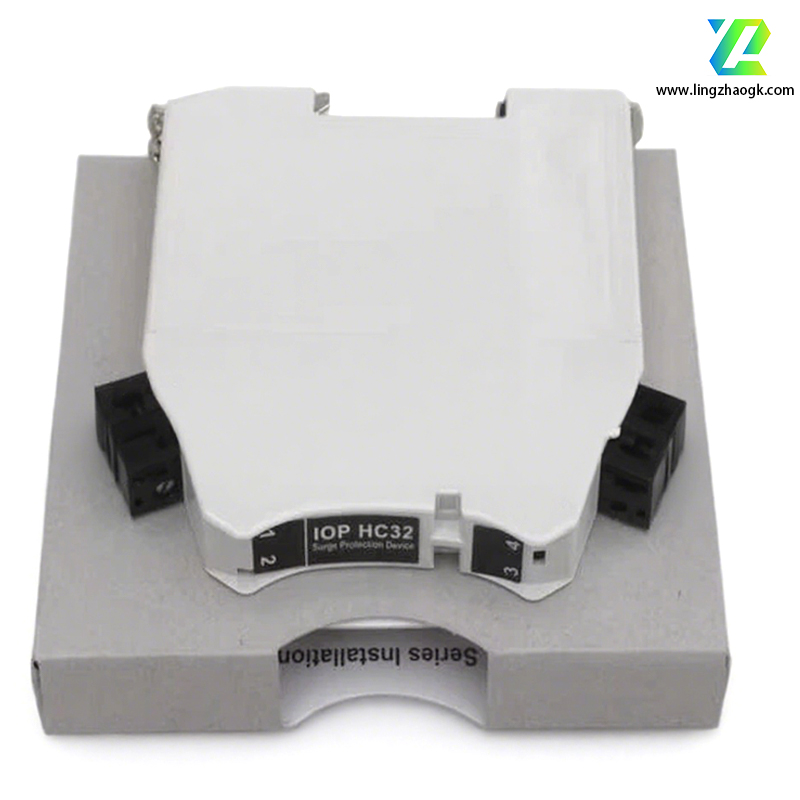

MTL Safety Barrier/Eaton Safety Barrier IOP HC32 Surge Protector

MTL Safety Barrier/Eaton Safety Barrier IOP HC32 Surge Protector
