Product introduction

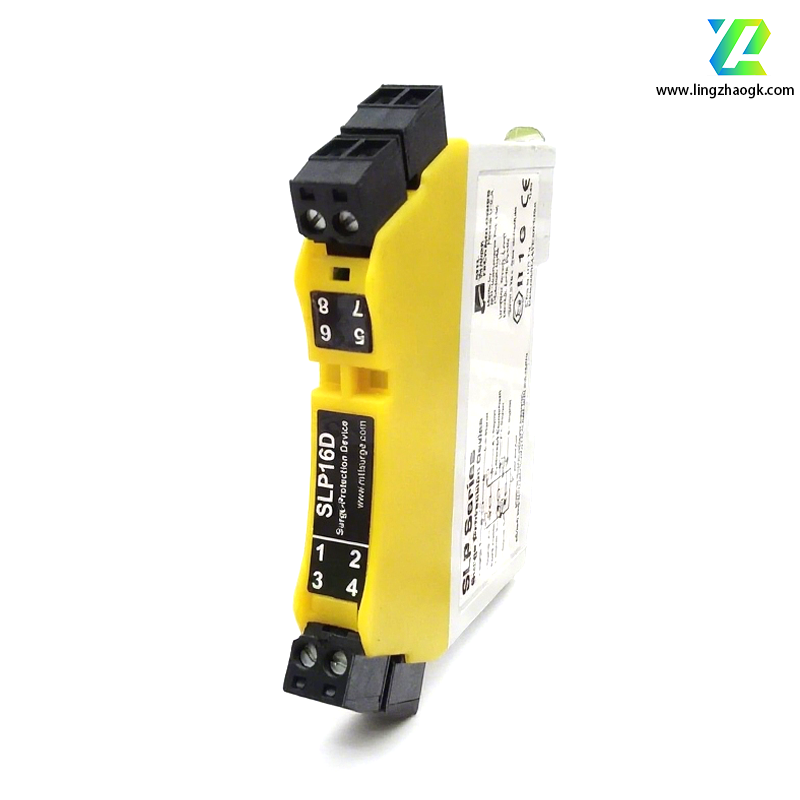

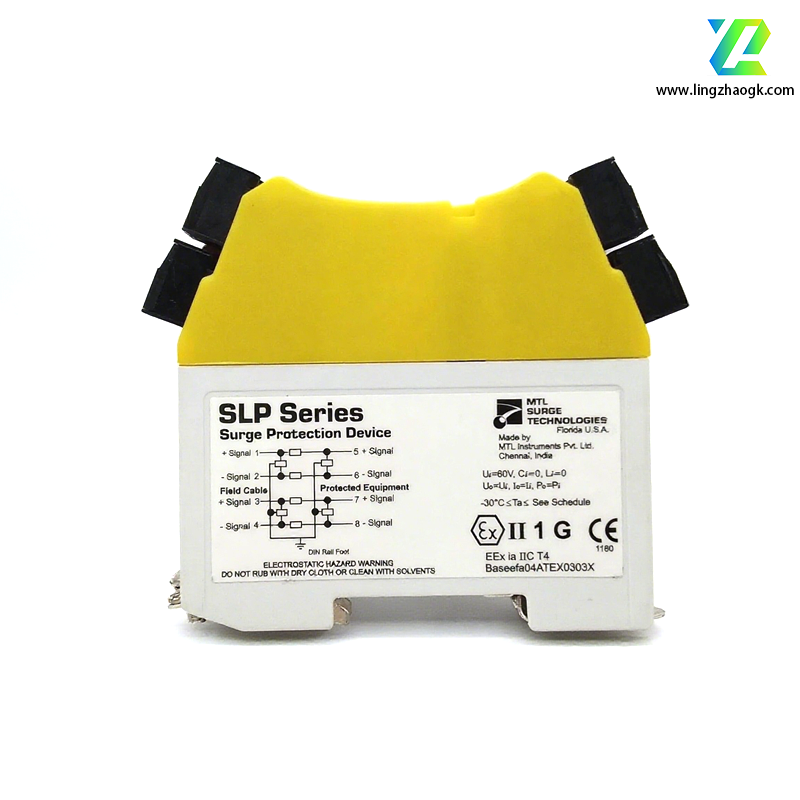

MTL SLP16D is a surge protector manufactured by MTL Instruments in the UK. The following is a detailed introduction:- **Features**: It adopts a unique solid-state circuit switch design with up to

MTL The SLP16D is a surge protector manufactured by MTL Instruments in the UK. The following is a detailed introduction: - **Features**: It utilizes a unique solid-state circuit switch design, offering a surge protection rating of up to 20kA (8/20μs). It conducts current in a very short time, preventing damage to other devices in the circuit. It features a low-impedance circuit design, minimal leakage current, and automatic reset, requiring no maintenance. - **Protected Circuits**: Each SLP16D protects two circuits or one four-wire circuit, providing reliable surge protection. - **Operating Voltage**: Nominal voltage is 16V, rated voltage (MCOV) is 18V. - **Electrical Parameters**: Nominal current 1.50A, nominal discharge current (8/20s) 3kA, maximum discharge current (8/20s) 20kA, inrush current (10/350s) 2.5kA, residual voltage @isn 23V, voltage protection level @1kV/s less than 18V, bandwidth 50MHz, capacitance 60pF, series resistance 1.0Ω. - **Mounting Method**: Standard DIN rail mounting for easy installation. - **Applications**: BASEEFA certified for use in intrinsically safe circuits, suitable for process control systems, telemetry systems, control and instrumentation systems in industries such as petroleum, chemical, telecommunications, airports, mining, and factories. - **Product Certification**: ATEX certified, this is an intrinsically safe surge protector.

MTL Safety Barrier/Eaton Safety Barrier SLP16D  Surge Protector

MTL safety barrier/Eaton safety barrier SLP16D  Surge Protector

We have the discontinued spare parts you need right here.
