Product introduction

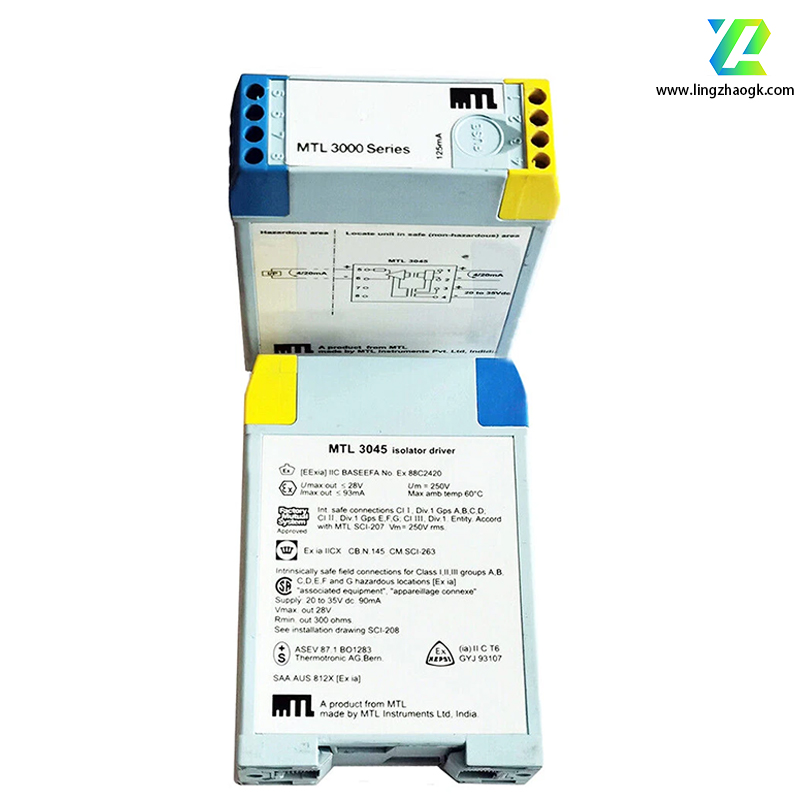

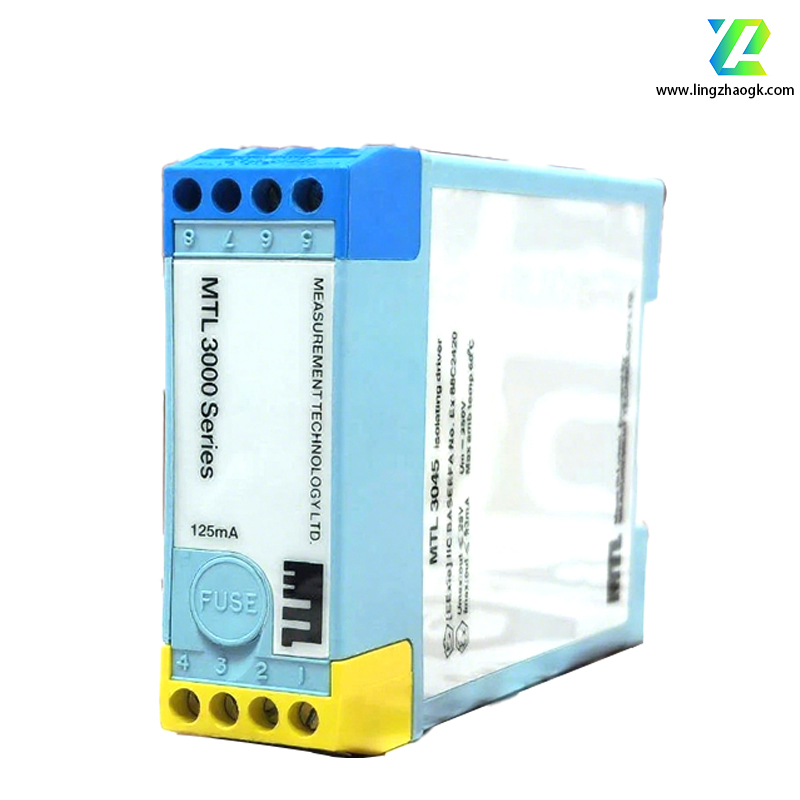

MTL safety barrier MTL3045 is an isolated driver in the MTL3000 series. The following is a detailed introduction: Features: It is a current output type isolated safety barrier that can receive a group of

MTL safety barrier MTL3045 is an isolation driver in the MTL3000 series. The following is its detailed introduction:

• Functional Features: It is a current output type isolated safety barrier that can receive a set of standard 4-20mA current signals on the safe side and copy them to the dangerous side to drive on-site actuators, such as electric converters and valve positioners.

• Technical Parameters: The working power supply is 20-35V DC, the current is 90mA; the maximum output voltage is 28V; the maximum output current is 93mA; the input and output resistance is 300 ohms; maximum ambient temperature is 60°C.

• Installation method: Guide rail installation is usually adopted, which is convenient for installation and layout in the control cabinet, saves space, and is convenient for combination and connection with other equipment.

• Application Fields: Mainly used in industrial fields with explosive hazardous environments such as petroleum, chemical, and metallurgy, for achieving safe control of actuators in hazardous areas and signal transmission.

MTL safety barrier/Eaton safety barrier MTL3045 isolation driver

MTL safety barrier/Eaton safety barrier MTL3045 isolation driver
