Product introduction

EMERSON KJ2231X1-EA1 is a relay output module in the Emerson DeltaV SIS series.

EMERSON KJ2231X1-EA1 is a relay output module in the Emerson DeltaV SIS series. The relevant introduction is as follows: - **Product Type**: SIS Relay Module. - **Place of Origin**: United States. - **Dimensions**: Approximately 114mm × 38mm × 89mm. - **Weight**: Approximately 0.23kg. - **Power Supply Voltage**: Rated 24VDC. - **Power Consumption**: Approximately 4W. - **Number of Relay Outputs**: Equipped with 4 relay outputs. - **Relay Specifications**: The contact type is Single-Pole Double-Throw (SPDT). The maximum current is 5A under the conditions of 120V AC or 30V DC, and the maximum voltage is 240V AC and 120V DC. - **Operating Temperature Range**: -40°C to 70°C. - **Storage Temperature Range**: -40°C to 85°C. - **Humidity Requirement**: 5% to 95% relative humidity, non-condensing. - **Shock Resistance**: Capable of withstanding a shock with a peak value of 30g and a duration of 11ms. - **Vibration Resistance**: Capable of withstanding vibration with a frequency range of 5Hz to 500Hz and an acceleration of 2g.

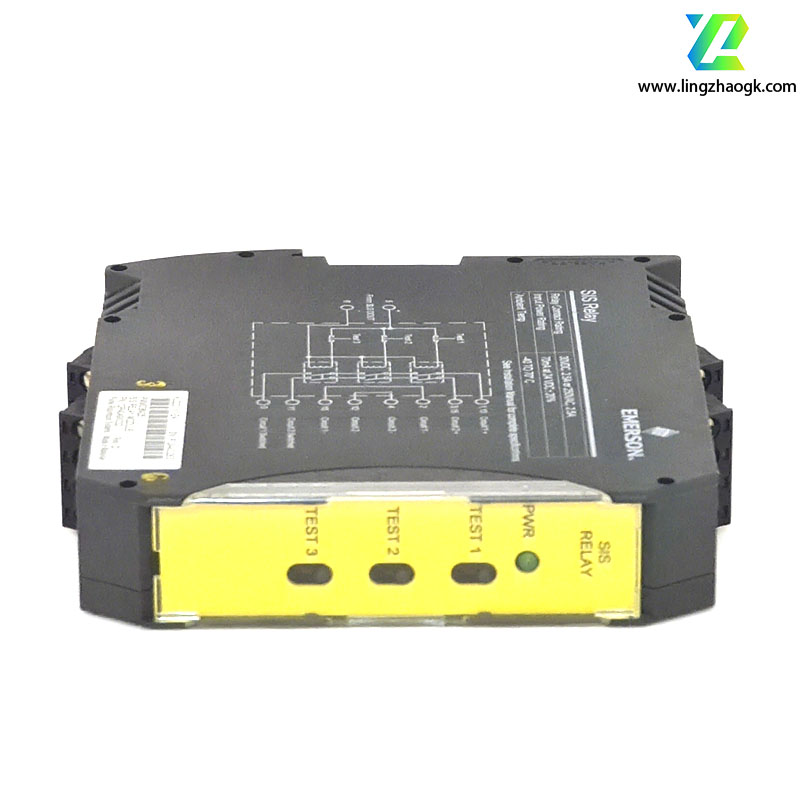

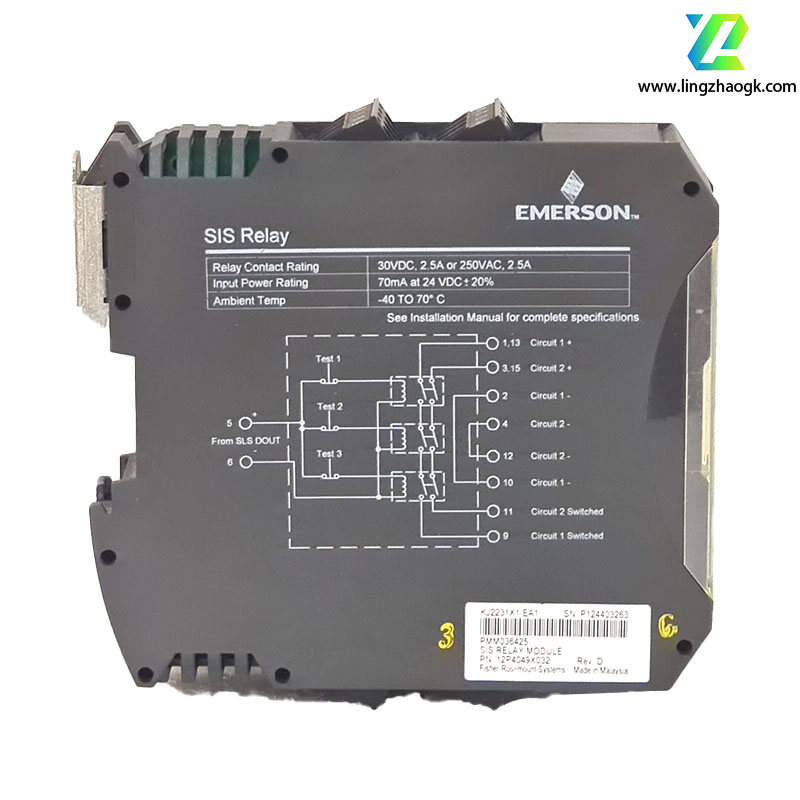

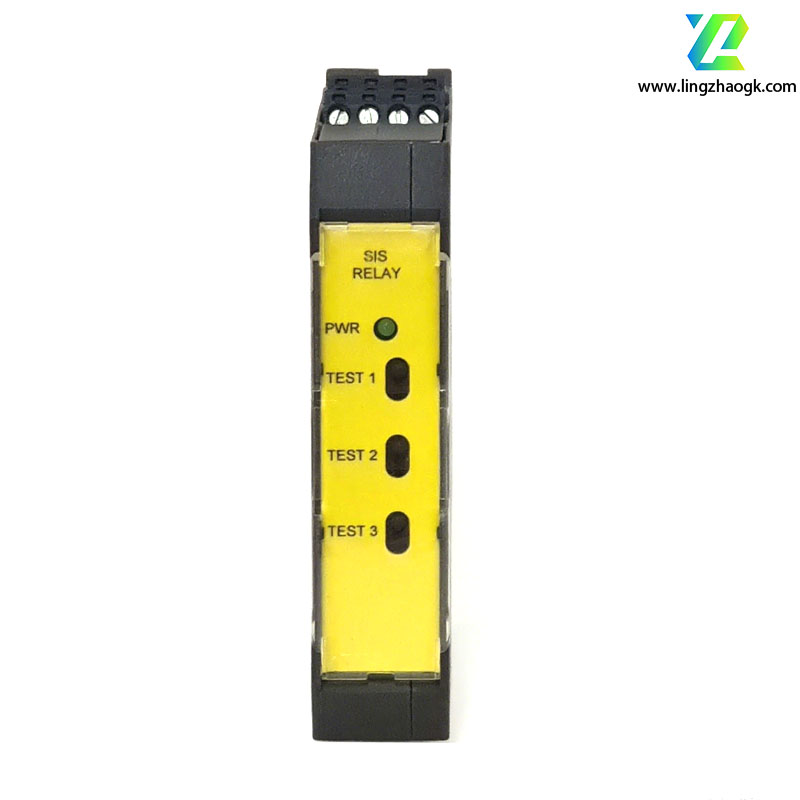

EMERSON KJ2231X1-EA1 SIS RELAY MODULE

EMERSON KJ2231X1-EA1 SIS RELAY MODULE

We have the discontinued spare parts you urgently need!

A complete range of models and sufficient stock! Spot goods will be shipped immediately, and the price is favorable!
