Product introduction

The Siemens 6ES7151-1AA03-0AB0 is a SIMATIC DP interface module, part of the ET2

The Siemens 6ES7151-1AA03-0AB0 is a SIMATIC DP interface module, part of the ET200S distributed I/O series. The following is a detailed description: - **Function**: Used to connect the ET200S distributed I/O system to the PROFIBUS DP bus, enabling data communication between distributed I/O devices and the master station. - **Technical Parameters**:    - **Transmission Rate**: Up to 12 Mbit/s.    - **Data Capacity**: Input and output data capacity is 128 bytes each.    - **Number of Connectable Modules**: Up to 63 power supply, electronic, or motor starter modules can be connected, with a maximum total module width of 2 meters. Bus Interface: Bus connection via a 9-pin Sub-D connector, including a terminal block. Address Space: Maximum address space: 244 bytes for input and 244 bytes for output. Operating Voltage: Typically 24V DC. Features: Multi-Mode Support: Can operate as a DPV0 or DPV1 slave. Easy Firmware Update: Firmware updates can be performed via PROFIBUS DP using STEP7. - **Diagnostic Function**: Equipped with interrupt and diagnostic functions, the red "SF" (System Fault) LED indicates group errors, the red "BF" (Bus Fault) LED monitors the PROFIBUS DP bus, and the green "ON" LED indicates the power supply voltage status of electronic devices. - **Installation Method**: Field-mountable, modular structure. - **Application Areas**: Widely used in industrial automation control systems, such as manufacturing, chemical, and power industries, for communication and control of distributed I/O devices. It can be used with master devices such as Siemens S7 series PLCs.

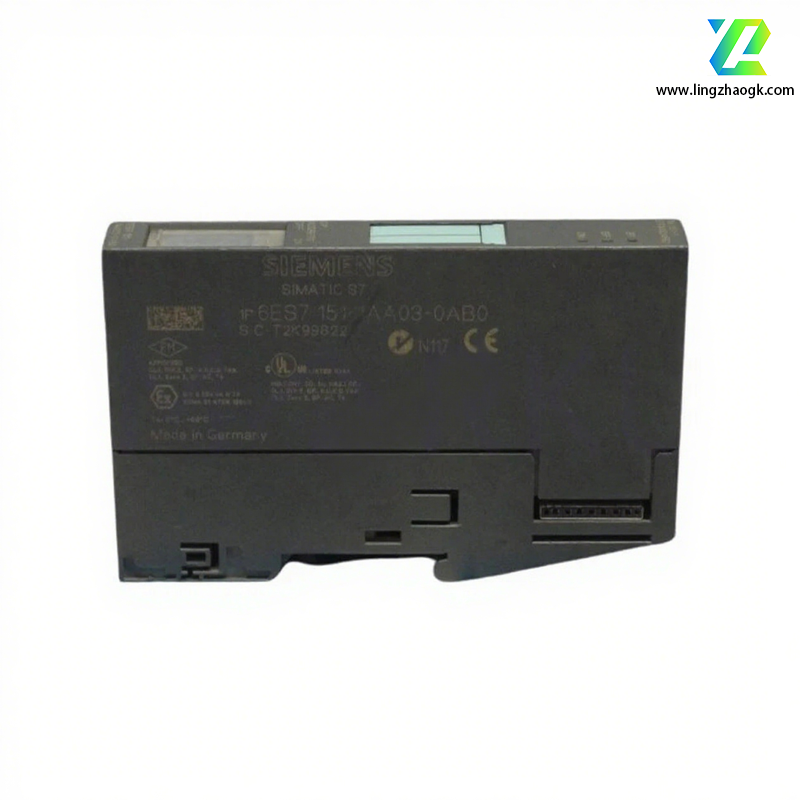

Siemens 6ES7151-1AA03-0AB0 interface module

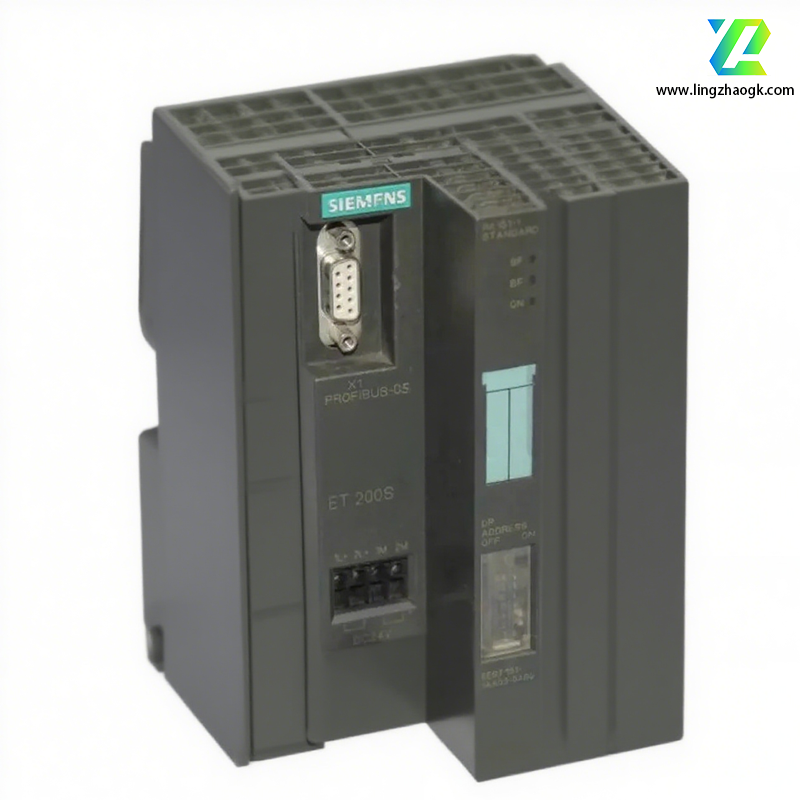

Siemens 6ES7151-1AA03-0AB0 interface module

We have the discontinued spare parts you urgently need!

A complete range of models and sufficient stock! Spot goods will be shipped immediately, and the price is favorable!

Sales Manager: Liu Jing

Email: 3918466031@qq.com 丨 Phone/WeChat: +86 13328402352/13328402352
