Product introduction

The Schneider TSXDSY16T2 is a discrete output module in the Modicon Premium seri

The Schneider TSXDSY16T2 is a discrete output module in the Modicon Premium series. The following is a detailed introduction: - **Basic Parameters**:    - **Output Channels**: 16 solid-state output channels.    - **Operating Voltage**: 24V to 30V DC, compliant with EN/IEC 61131-2.    - **Output Current**: Each discrete output can handle up to 0.5A of current, with a current limit of 0.625A per channel.    - **Power Consumption**: Less than or equal to 3W.    - **Power Supply Current**: 80mA at 5V DC. **Performance Features**: **Solid-State Technology**: Solid-state output technology eliminates mechanical wear, resulting in a long service life and low maintenance compared to traditional electromechanical relays. **Fast Response Time**: With a response time of 1.2ms, control commands can be executed quickly and accurately. **Multiple Protection Features**: Output overvoltage protection (via transient suppression diode), reverse polarity protection (via reverse-mounted diode), short-circuit protection, and output overload protection (via electronic trip mechanism) are provided. **Low Leakage Current**: In state 0, leakage current is less than 0.5mA, reducing energy waste. **High Isolation Resistance**: Isolation resistance exceeds 10MΩ at 500V, ensuring electrical isolation and contributing to overall system safety and stability. **Connections and Indicators**: **Electrical Connections**: Screw terminals are used for easy installation. **Status Indicators**: Each output is equipped with an LED indicator, providing real-time status and diagnostic information for easy troubleshooting and maintenance. **Applications**: Suitable for a variety of industrial automation applications, such as manufacturing processes, machine control, and process automation systems. It can be used to control devices such as solenoid valves, relays, and indicator lights.

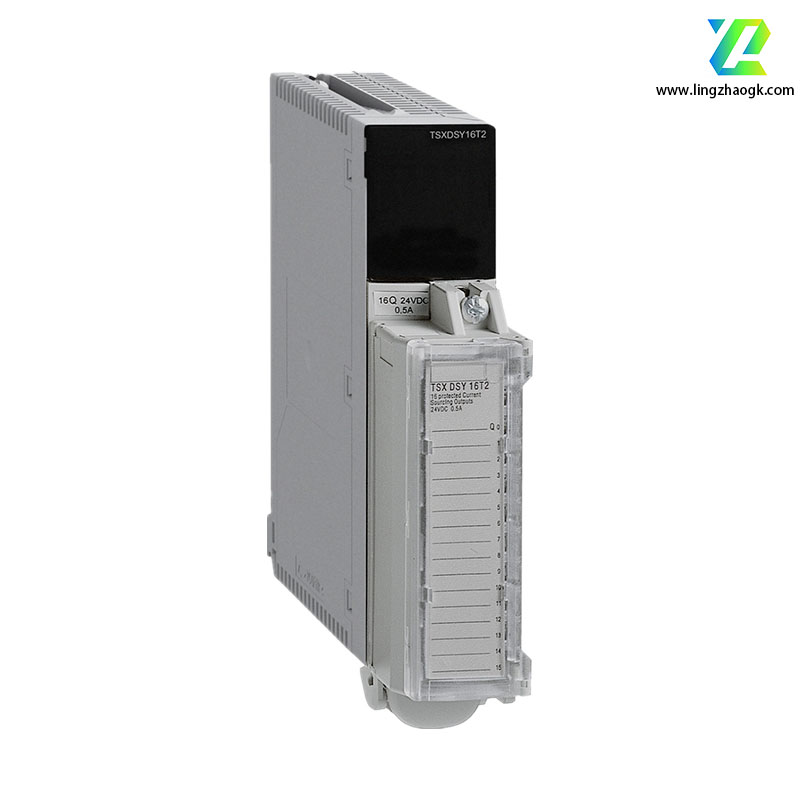

Schneider/Schneider  TSXDSY16T2  Discrete Output Module

Schneider/Schneider  TSXDSY16T2  Discrete Output Module
