Product introduction

The BENTLY NEVADA 60M100-00 is a condition monitoring system launched by Bently

The BENTLY NEVADA 60M100-00 is a condition monitoring system launched by Bently Nevada. The relevant introduction is as follows:

## Basic Parameters - **Power Supply**: The DC input voltage range is typically 18Vdc to 36Vdc, with a maximum current of 1.7A and a maximum inrush current of 2.7A (duration less than 5ms). - **Dimensions and Weight**: There are two sets of specifications. One has dimensions of approximately 225mm × 150mm × 55mm and a weight of 1.4kg; the other has dimensions of 148mm × 246mm × 48mm and a weight of approximately 500g. - **Installation Method**: Adopts DIN rail mounting. - **Operating Environment**: The general operating temperature range is -40°C to +70°C, the storage temperature range is -45°C to +85°C, and the relative humidity is 0% to 95% (non-condensing). ## Performance Features - **Channel Configuration**: It can access up to 12 dynamic signal channels, which can be configured as ICP or 3-wire proximity probes. In addition, there are 2 keyphasor channels that can connect to 3-wire proximity probes or other speed sensors. - **Signal Processing**: Uses sigma-delta 24-bit A/D conversion. Both the dynamic range and signal-to-noise ratio reach 110dB @ fs = 102.4ksps, and the bandwidth is 0 to 40kHz. - **Measurement Accuracy**: The operating frequency range is 40Hz to 10kHz, with an accuracy of up to ±0.1% of reading, a sensitivity of 0.1μm rms, a measurement range of 0-3600 RPM, and a resolution of 0.1 RPM. - **Communication Capability**: Equipped with two independent Ethernet ports, which are the network DHCP port and the local static IP port respectively. It supports communication protocols such as Ethernet TCP/IP and Modbus TCP. - **Status Indication**: Equipped with LED indicators for power, normal, danger, and alarm, which can intuitively display the operating status and alarm conditions of the device. ## Functions and Purposes - **Real-time Monitoring**: Can continuously track and conduct real-time analysis on key parameters of industrial equipment, such as vibration, temperature, and rotational speed. - **Fault Diagnosis**: Using advanced signal processing algorithms and analysis of machine operating status, it can detect potential mechanical faults several months in advance, facilitating predictive maintenance. - **Flexible Configuration**: It can operate as an independent monitoring unit, be networked to form a distributed monitoring network, or be integrated into the control and instrumentation package of the original equipment manufacturer (OEM) of the machine. ## Application Fields This product is mainly designed for wind turbine generator units and can conduct comprehensive monitoring on key components such as tower sway, main bearings, main rotors, gearboxes, and generator bearings. In addition, it is also widely used in the maintenance and management of other rotating mechanical equipment such as turbines, generators, and transformers.

We have many products that have not yet been listed. For more product information, please contact us.

If there is any inconsistency between the displayed product model and the picture, the model shall prevail.

If you need pictures of specific products, please contact us.

We have 28 shared warehouses worldwide and stock most of the models available on the market.

Welcome to add our WeChat for consultation and more information!

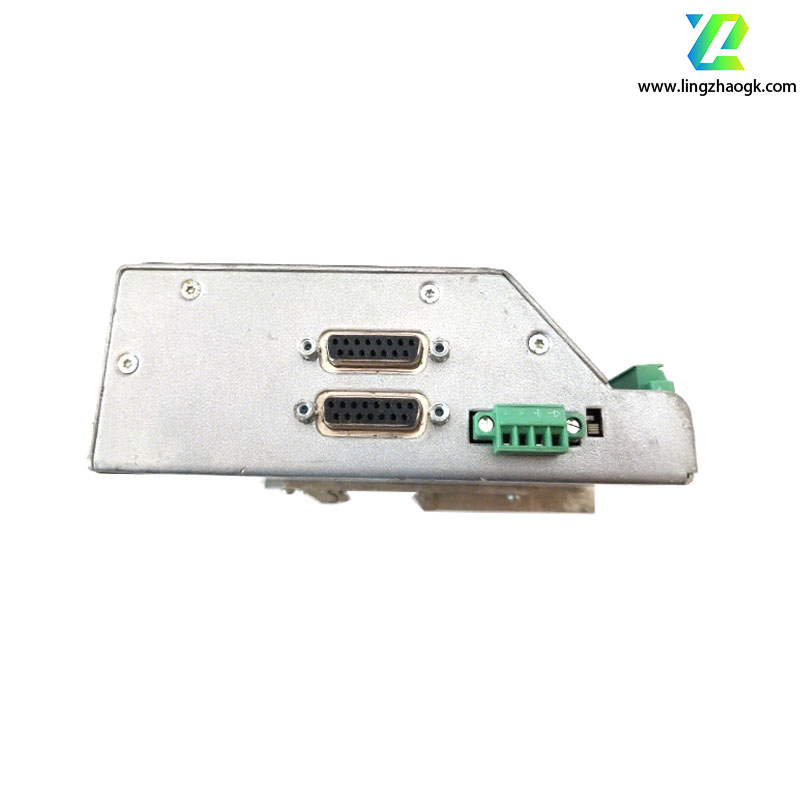

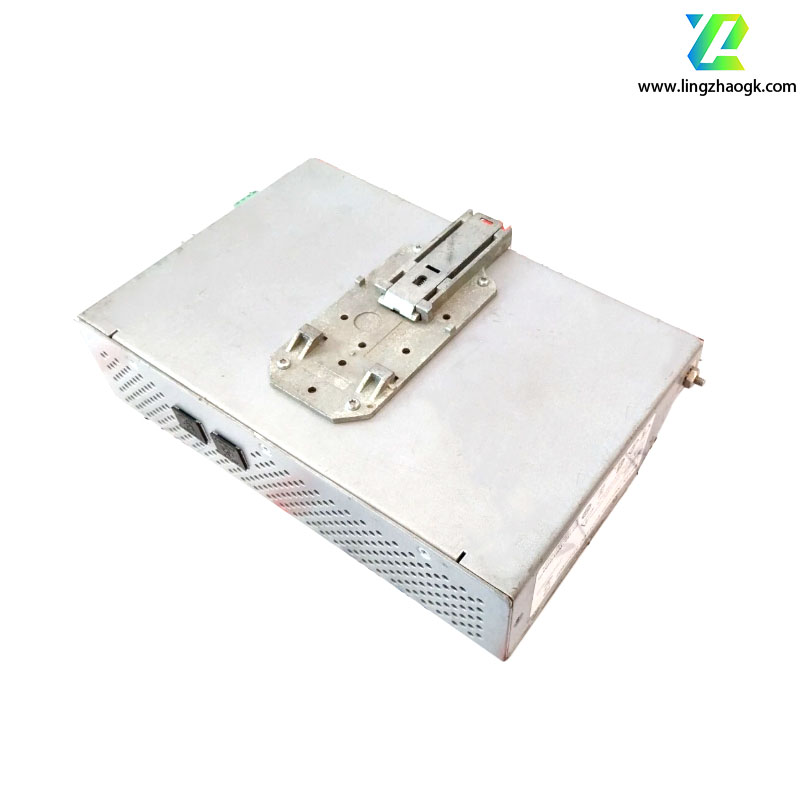

BENTLY NEVADA 60M100-00 Module

BENTLY NEVADA 60M100-00 Module
