Product introduction

ABB AI830 3BSE008518R1 is an analog analog input module belonging to ABB's S

ABB AI830 3BSE008518R1 is an analog analog input module belonging to ABB's S800 I/O series, designed for precise acquisition of analog signals in industrial automation systems. Here is its detailed introduction: ### Basic Information - **Brand**: ABB   - **Model**: AI830 3BSE008518R1   - **Type**: Analog Input Module   - **Application**: Primarily used to collect various analog signals (such as 4-20mA current, 0-10V voltage, etc.) from field devices in industrial processes, and transmit them to controllers like PLC or DCS for monitoring, analysis and control. It is widely applied in industries such as chemical, petroleum, power, metallurgy and manufacturing. ### Technical Parameters - **Input Channels**: Equipped with 8 analog input channels, which are galvanically isolated from each other and from the backplane to reduce interference.   - **Input Signal Types**: Supports multiple standard analog signals, including 4-20mA, 0-20mA, 0-10V, ±10V, etc., with flexible configuration options to adapt to different field devices.   - **Accuracy**: High measurement accuracy, with a typical total error of less than ±0.1% of full scale, ensuring reliable and precise data collection.   - **Resolution**: 16-bit resolution for detailed signal acquisition and accurate representation of small signal changes.   - **Isolation Performance**: Channel-to-channel and channel-to-backplane isolation meets industrial standards, effectively preventing signal crosstalk and improving system stability.   - **Filtering Function**: Configurable digital filters are provided to suppress noise and interference in the signal, ensuring stable and smooth data transmission.   - **Operating Conditions**:    - Temperature range: -20°C to +60°C    - Humidity range: 5% to 95% (non-condensing)   - **Power Supply**: Typically uses 24V DC power supply, with low power consumption.   ### Functional Features - **Diagnostic Capabilities**: Built-in comprehensive diagnostic functions, including open-circuit detection of input loops, over-range/under-range indication, and module self-diagnosis, which helps in quickly locating and troubleshooting faults.   - **Status Indicators**: Each input channel is equipped with an LED indicator to display its working status (e.g., normal operation, over-range), and the module has overall status LEDs for power and communication, facilitating on-site monitoring.   - **Configuration Flexibility**: Can be easily configured through ABB's engineering software (such as Control Builder M) to set signal types, filter parameters, etc., according to specific application requirements.   ### Matching Termination Units It needs to work with specific termination units such as TU810, TU812, TU830, etc., to complete signal connection, distribution and protection.   This module integrates high precision, strong anti-interference ability and rich diagnostic functions, providing reliable analog signal acquisition solutions for industrial automation control systems.

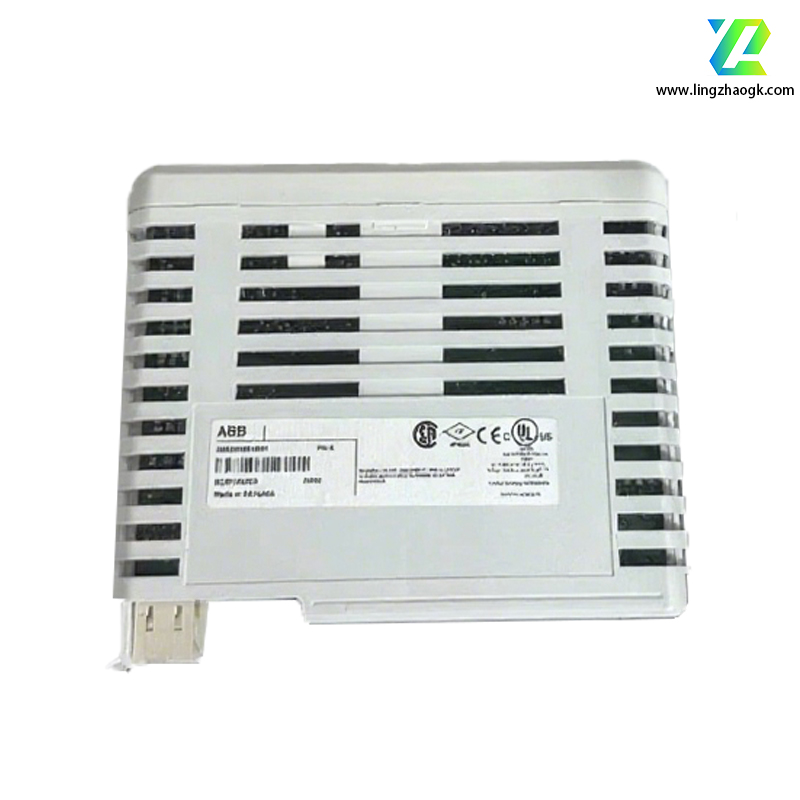

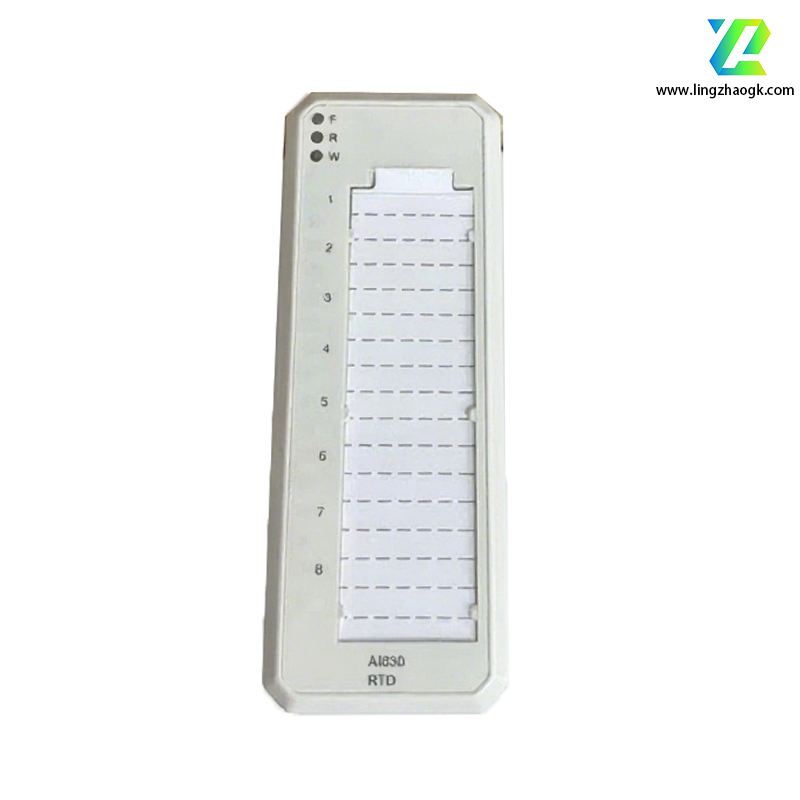

ABB AI830 3BSE008518R1 Controller Module Card

ABB AI830 3BSE008518R1 Controller Module Card
