Product introduction

The ABB TU830V1 3BSE013234R1 is a modular expansion terminal unit suitable for i

The ABB TU830V1 3BSE013234R1 is a modular expansion terminal unit suitable for industrial automation systems. It connects a variety of sensors and actuators and supports analog and digital signal input and output. This module offers high reliability and flexibility, meeting the needs of diverse industrial environments.

1. Parameters

• Rated voltage: 50V.

• Maximum current: 2A. The maximum rated voltage per channel is 50V.

• Signal channels: Supports up to 16 I/O channels, including two process voltage connections and two I/O connections, as well as one zero point connection (ZP).

• Dimensions: Net depth/length 64 mm, net height 120.5 mm, net width 110 mm.

• Weight: 0.2 kg.

• Operating temperature range: -40°C to +55°C.

• Storage temperature range: -40°C to +85°C.

• Humidity: 5% to 95% (non-condensing).

2. Product Features

• Modular design: I/O modules can be added or removed as needed to adapt to changing production needs.

• High reliability: Suitable for harsh industrial environments and can operate stably for a long time.

• Flexibility: Supports a variety of I/O modules and communication protocols, and can be flexibly configured to meet different control system requirements.

• Ease of use: Simple installation and configuration, users can get started quickly.

• Scalability: Supports multiple types of sensors and actuators, suitable for a variety of industrial scenarios.

• ABB TU830V1 3BSE013234R1

3. Structure and Components

• Modular Format: Expandable Modular Terminal Unit (MTU) with a modular design for easy installation and expansion.

• Connection Method: Connects to field I/O modules via terminal blocks, supporting modular expansion.

• Internal Components: Includes multiple signal input and output channels, supporting the transmission of analog and digital signals.

4. Applications

• Industrial Automation: Widely used in industrial automation systems to connect and manage field sensors and actuators, supporting the transmission of analog and digital signals.

• Control system: Can be used as an expansion module of the PLC system to connect and expand I/O modules, thereby improving the flexibility and reliability of the system.

• Environmental adaptability: Suitable for a variety of harsh environments, such as high temperature, high humidity and other industrial scenarios, to ensure stable operation of the equipment

src="/uploads/allimg/20250722/1-250H21A3544W.jpg" alt="3.jpg"/>

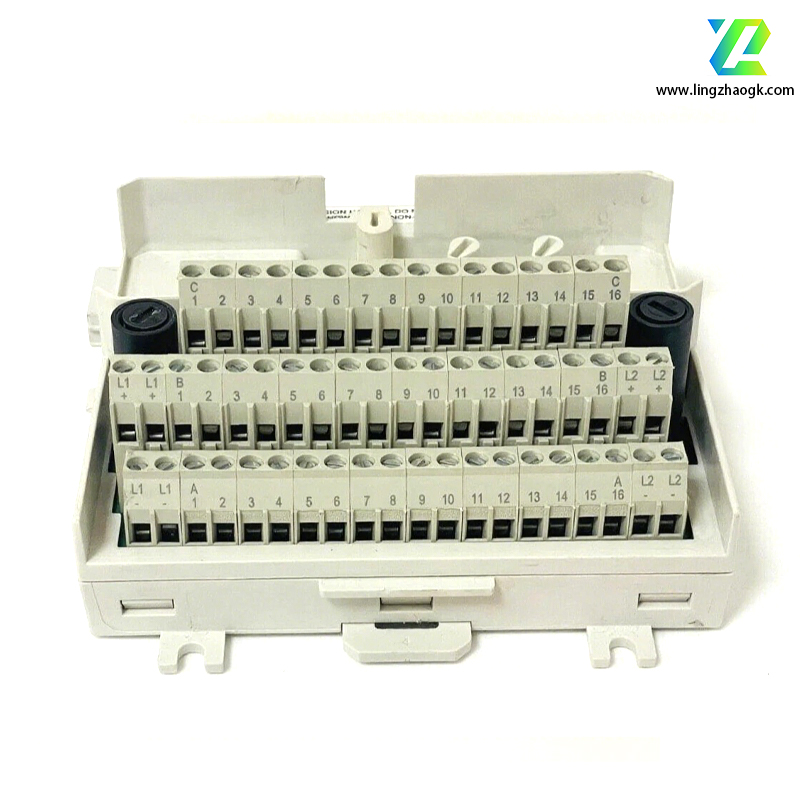

ABB TU830V1 3BSE013234R1 expansion module terminal unit

ABB TU830V1 3BSE013234R1 expansion module terminal unit
