Product introduction

The Yokogawa ANB10D-425/CU2N is a dual-redundant ESB (Enhanced System Bus) bus n

The Yokogawa ANB10D-425/CU2N is a dual-redundant ESB (Enhanced System Bus) bus node unit belonging to Yokogawa Electric's CS3000 R3 DCS (Distributed Control System) series. Below is its detailed introduction: - **Meaning of Model Suffixes**: In the suffix, "-4" indicates a dual-redundant power supply, "2" means it uses a 220-240V AC power supply, and "5" represents the basic model without explosion-proof protection. The additional code "/CU2N" indicates that it is configured with an ESB bus connector unit. - **I/O Channel Specifications**: It is equipped with 8 analog input channels, 4 analog output channels, 16 contact input channels, and 16 contact output channels. - **Signal Input/Output Range**: For analog input, it supports multiple voltage signals such as ±10V, ±20mV, ±50mV, ±1V, ±5V, ±10mV DC, and can also accept current signals of ±20mA, ±10mA DC. For analog output, it can output ±10V DC voltage and ±20mA DC current signals. - **Power Supply**: It adopts a 220-240V AC power supply. With a dual-redundant power supply design, it ensures the reliability of power supply. - **Dimensions and Weight**: Its dimensions are 180mm × 80mm × 55mm, and its weight is approximately 0.8kg. - **Operating Environment**: The operating ambient temperature range is -20°C to 60°C, the ambient humidity requirement is between 10% and 90%, and no condensation is allowed. - **Functional Features**: It supports Profibus DP and PA protocols, can connect up to 255 I/O modules, and can also connect up to 4 remote I/O units, with a maximum communication speed of 3.2Mbps. This module is equipped with a dual-redundant power supply and features a compact and robust design, enabling it to withstand harsh industrial environments and complete data transmission between local nodes and remote nodes within the control station.

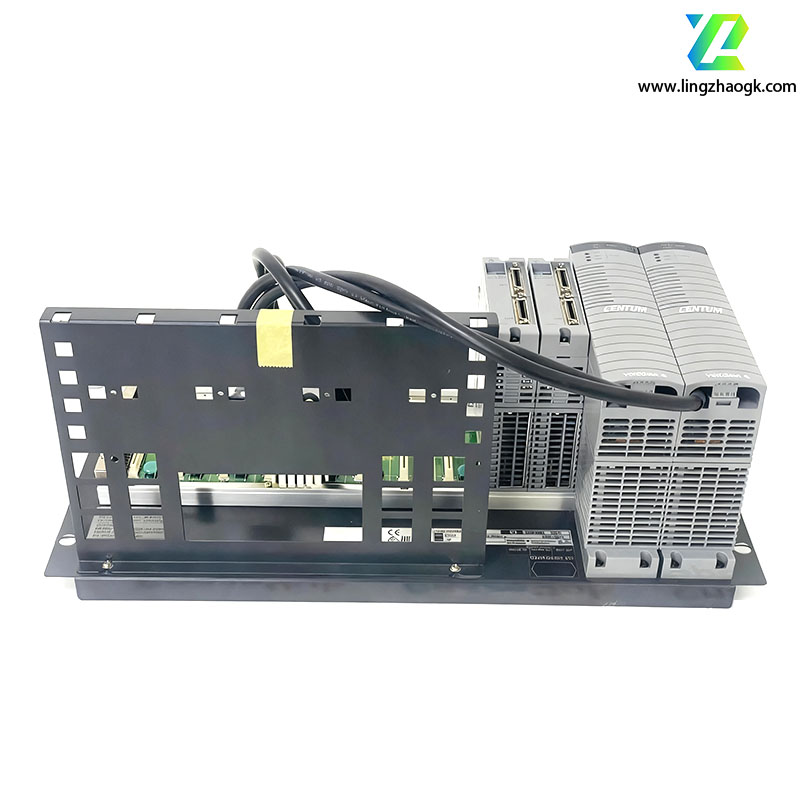

Yokogawa  ANB10D-425/CU2N | Dual Redundant ESB Bus Node Unit

Yokogawa  ANB10D-425/CU2N | Dual Redundant ESB Bus Node Unit
