Product introduction

The XP367 is a ZJU SUPCON intelligent 16-channel passive transistor switch conta

The XP367 is a ZJU SUPCON intelligent 16-channel passive transistor switch contact output card, primarily used in DCS control systems. It converts control signals into digital outputs to control external devices. The following is a detailed introduction: - **Features**:    - **Flexible Output Methods**: Compatible with different terminal boards to implement a variety of output circuits. When used with the TB367R-GPR terminal board, it can implement passive normally open, normally closed, and active normally open contact output circuits; when used with the TB367-GPRU terminal board, it can implement passive normally open and normally closed contact output circuits; and when used with the TB367-GPRPU terminal board, it can implement active normally open contact output circuits.    - **Hot-Swap Capability**: Supports hot swapping, allowing cards to be inserted and removed during system operation without affecting normal operation, facilitating maintenance and replacement. - **Output Hold**: This function maintains the output status in the event of a card failure or power outage, preventing sudden changes in the output status from impacting on-site equipment. - **Diverse Operating Modes**: Supports both single-card and redundant operating modes. Redundant mode improves system reliability. When a working card fails, a backup card automatically takes over. - **Performance Specifications**: - **Power Supply Requirements**: 5V power supply with a voltage range of 5.0-5.3V DC and a maximum current of 150mA. - **Number of Channels**: 16 output channels. - **Output Response Time**: Less than 100ms. - **Dielectric Strength**: 500V AC, 50Hz, 60s, leakage current ≤10mA. - **Operating Environment**: Operating temperature: 0-50°C, operating humidity: 10%-90% RH (non-condensing), atmospheric pressure: 62-106kPa (equivalent to an altitude of 4000 meters). Storage temperature: -40-70°C, storage humidity: 5%-95% RH (non-condensing). - **Dimensions**: 187mm x 145mm. - **Indicator Lights**: Features indicators such as FAIL (fault indicator), RUN (operation indicator), WORK (working/standby indicator), COM (communication indicator), and POWER (5V power indicator). You can monitor the card's operating status by viewing the indicator lights.

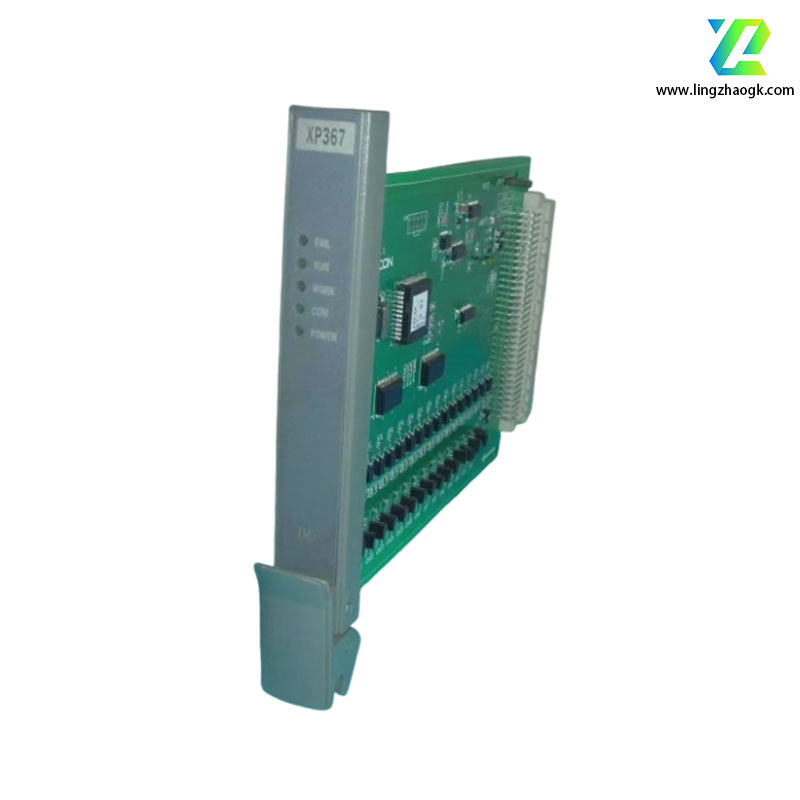

SUPCON   XP367 Intelligent 16-way Passive Transistor Switch Contact Output Card

SUPCON   XP367 Intelligent 16-way Passive Transistor Switch Contact Output Card
