Product introduction

The PCD3.M5340 is a CPU basic module manufactured by Saia Burgess and belongs to

The PCD3.M5340 is a CPU basic module manufactured by Saia Burgess and belongs to the PCD3 series. The following is a detailed description: - **Basic Functions**: The PCD3.M5340 is a CPU basic module with Ethernet TCP/IP functionality. It can be used in industrial automation control scenarios and supports expansion of up to 1023 central I/O points. - **Memory Configuration**: It has 1MB of program memory (RAM) for storing user programs and 2MB of flash memory for S-RIO, configuration, and data backup. - **Interface Type**: It has a USB 1.1 interface for connecting programming devices, etc.; the Ethernet interface is 10/100 Mbps, full-duplex, with auto-detection and auto-crossover support; and it also has an RS-232 interface (D-sub connector, baud rate up to 115 kbit/s) and an RS-485 interface (terminal block, baud rate up to 115 kbit/s). - **Processing Speed**: Bit operation processing time is 0.3 to 1.5 microseconds, and word operation processing time is 0.9 microseconds. - **Real-Time Clock**: A built-in real-time clock (RTC) provides a time reference. - **Power Requirements**: The supply voltage is 24V DC (with a tolerance of -20%/+25%, including a maximum 5% ripple) or 19V AC (with a tolerance of +/-15%, full-wave rectified, i.e., 18V DC). Power consumption is typically 15W (for 64 I/O ports).

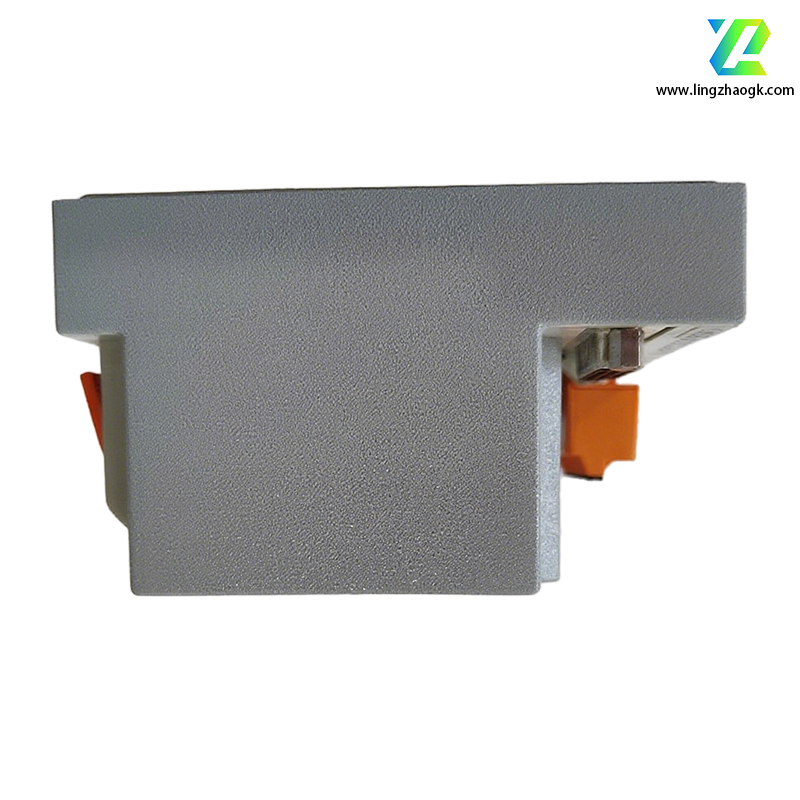

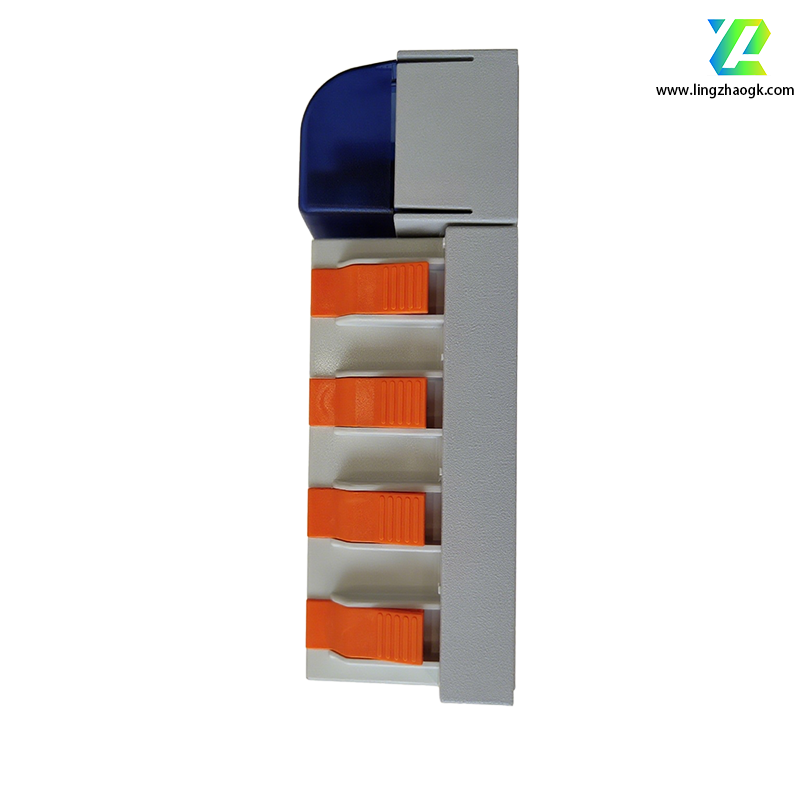

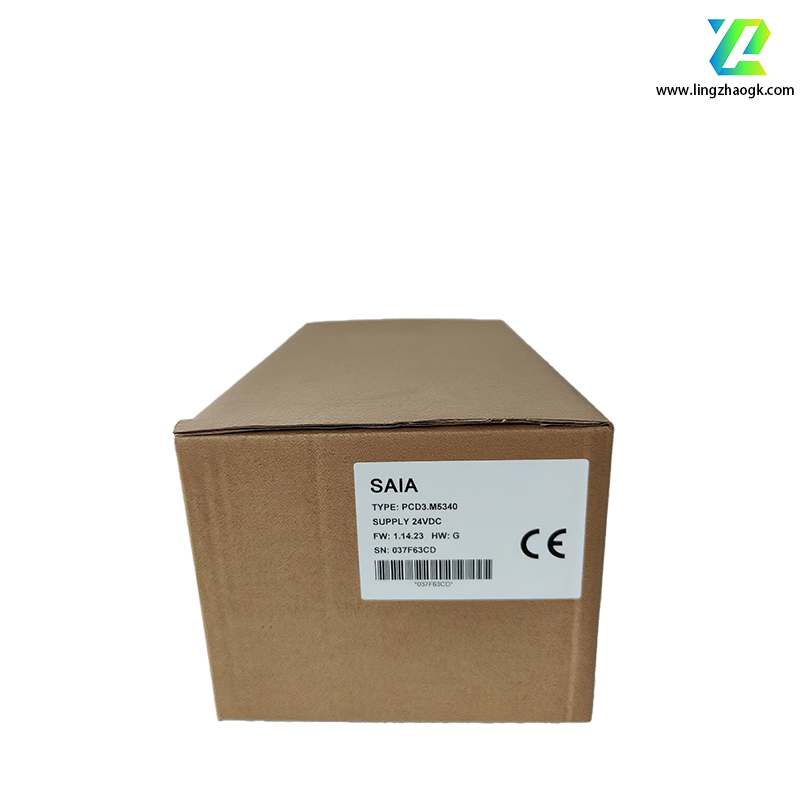

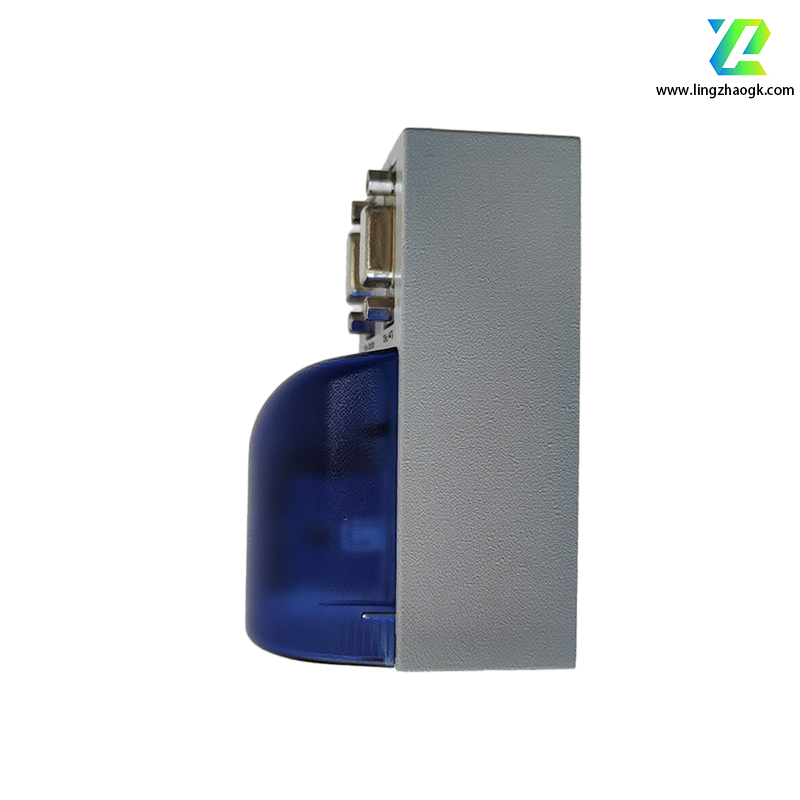

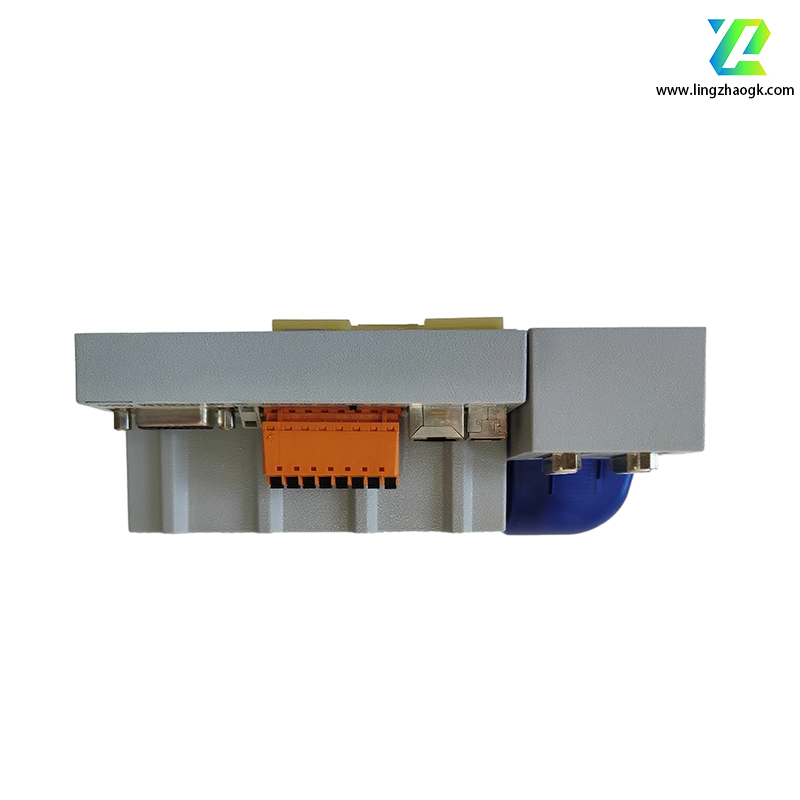

Saia Burgess PCD3.M5340 CPU Basic Module

Saia Burgess PCD3.M5340 CPU Basic Module
