• Product Application: It is mainly used to provide analog output signals for industrial automation systems, enabling program indication and recording of output signals in multi-channel systems, thereby allowing the system to achieve loop control.

• Number of Channels: It has 4 analog output channels, which can meet the control requirements of multiple circuits.

• Resolution: It features a 12-bit D/A (Digital-to-Analog) resolution, enabling relatively accurate analog signal conversion and output.

• Output Signals: The output signals can be in the form of voltage or current. The current output range is generally 0-20mA or 4-20mA, and each channel can provide both analog current and voltage signals.

• Isolation Characteristics: It has an isolation level of 2500 volts, which can effectively ensure the signal stability and safety between channels, as well as between logic and channels.

• Output Filter: It is equipped with a first-order low-pass output filter rated at 100Hz, which can perform certain processing on the output signals.

• Input Voltage: It supports an input voltage range of 10-30V DC, with wide adaptability.

• Operating Temperature: The operating temperature range is -20℃ to +70℃, allowing it to be used in a relatively wide range of ambient temperatures.

• Installation Method: It adopts a card-type structure and can be inserted into the AutoMax Multibus remote rack or main rack, facilitating system integration.

• Physical Dimensions: The approximate dimensions are 250mm×150mm×100mm, and the weight is about 1.2kg.

•

•

•

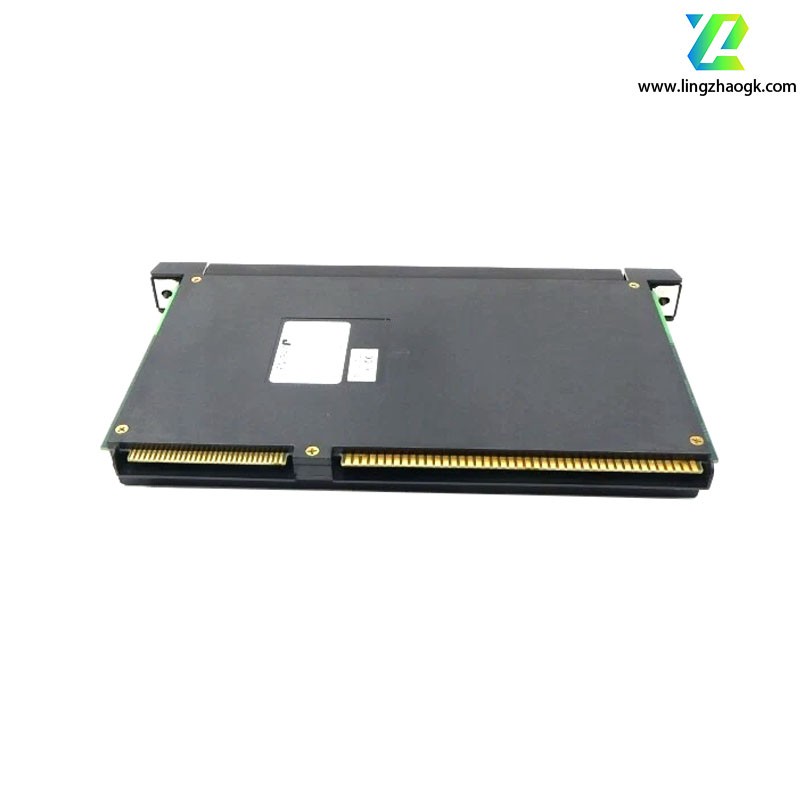

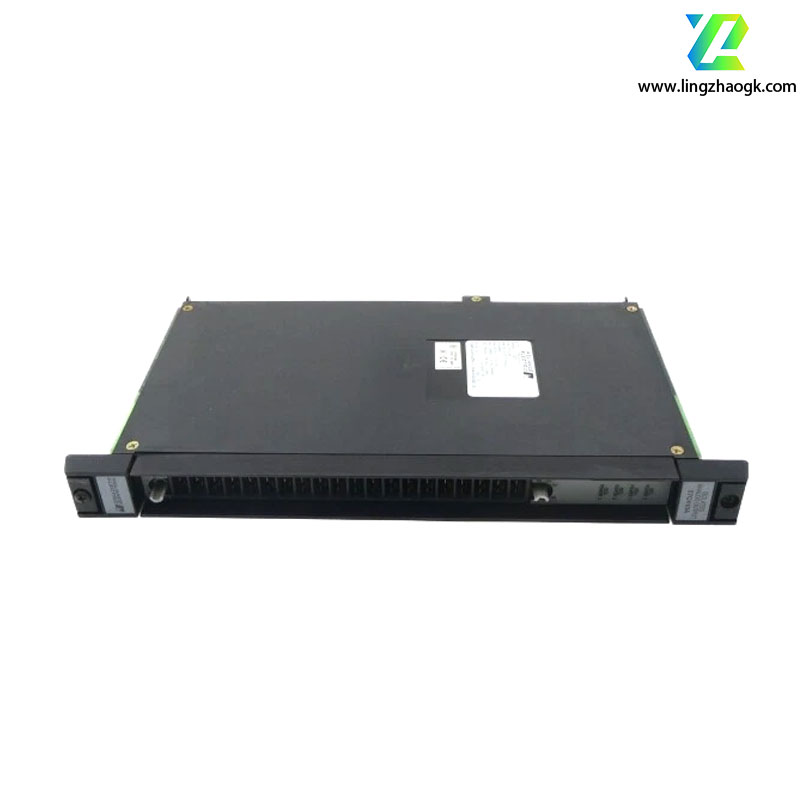

RELIANCE 57C410A ISOLATED ANALOG OUTPUT MODULE 57410-1

RELIANCE 57C410A ISOLATED ANALOG OUTPUT MODULE 57410-1
