Product introduction

MTL safety barrier MTL3046B is a relay power supply in the MTL3000 series. The following is a detailed introduction: Functional features: Mainly used to provide reliable power supply for "smart" transmitters, suitable for this

• Features: Primarily used to provide a reliable power source for "smart" transmitters, it is suitable for intrinsically safe field connections and can be used in hazardous environments. It transmits electrical signals between safe and hazardous areas, limiting energy transfer from safe to hazardous areas, and ensuring safe system operation.

• Technical Parameters: The operating power supply voltage range is 20-35V DC, and the maximum current is 125mA. The maximum explosion-proof voltage is 250V AC/DC, and the maximum voltage for intrinsically safe field connections is 28V with a minimum resistance of 300 ohms. Its output voltage is 28V, output current is 93mA, output power is 0.65W, inductance is 4.2mH, and capacitance is 0.13μF. The barrier weighs approximately 180g or 190g, and its protection level likely meets general industrial environment requirements. Its operating temperature range generally meets industry standards.

• Certification: Certified (EEx ia) IIC with Baseefa number Ex 89C2112U for use in Zone 1 and 2 hazardous areas.

• Application Areas: It is commonly used in industries with explosive and hazardous environments, such as petroleum, chemical, and metallurgy. It can be used with pressure transmitters, temperature transmitters, etc., and used for scenarios such as gas data input.

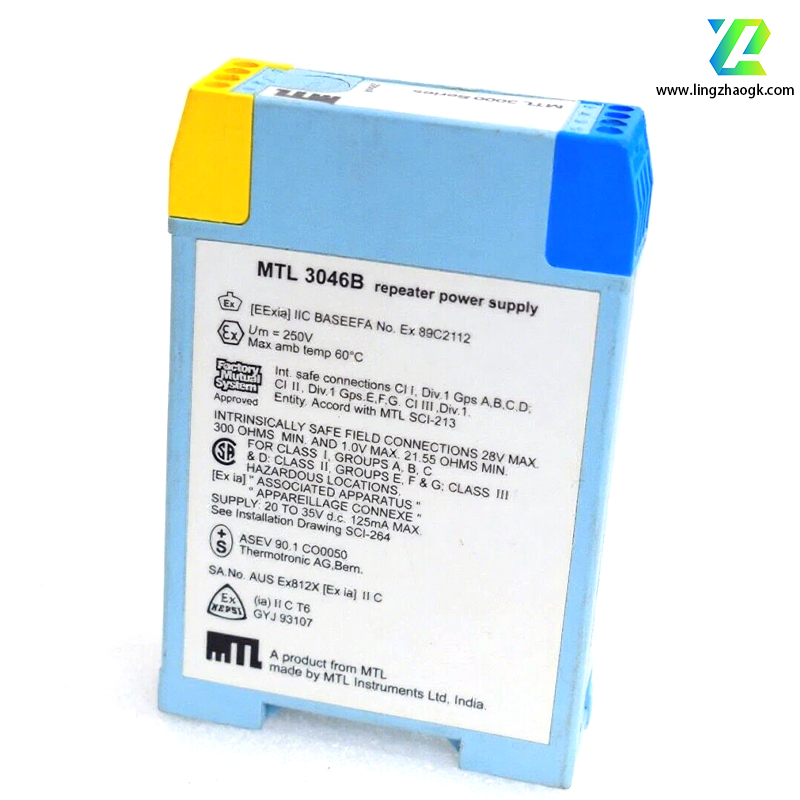

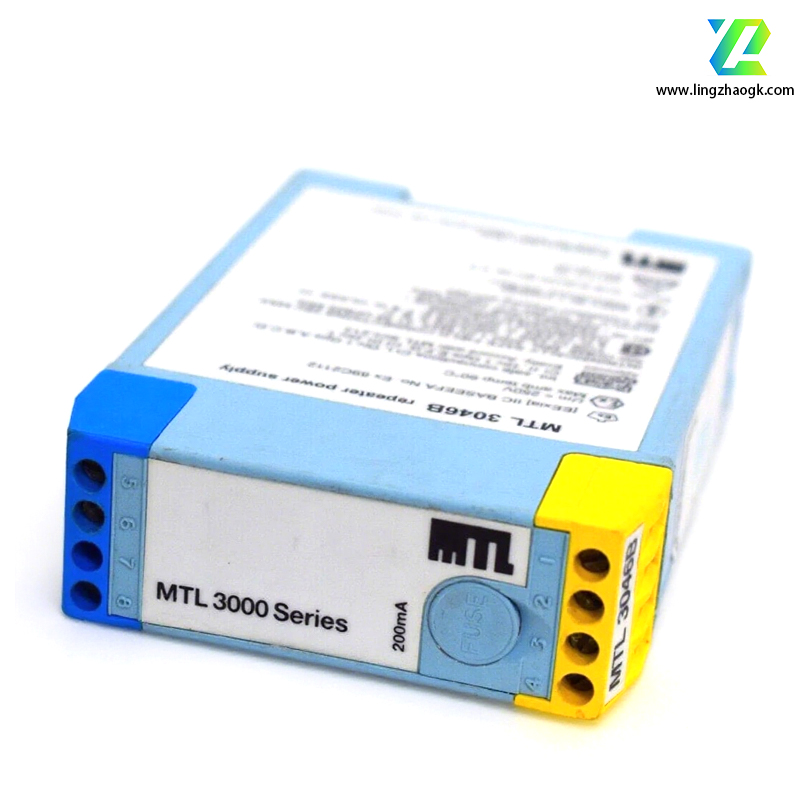

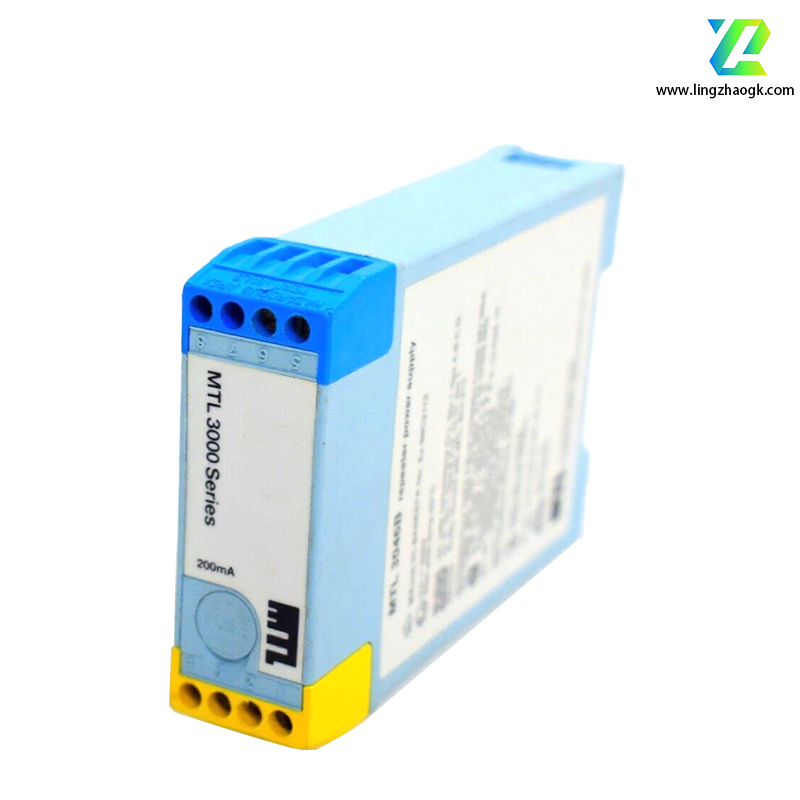

MTL Safety Barrier/Eaton Safety Barrier MTL3046B Relay Power Supply

MTL Safety Barrier/Eaton Safety Barrier MTL3046B Relay Power Supply
