Product introduction

Honeywell FC-TSAI-1620M is an analog input-related module suitable for industria

Honeywell FC-TSAI-1620M is an analog input-related module suitable for industrial automation scenarios. The following is its detailed introduction:   - **Function and Purpose**: This module is a safety manager system module. As a component of the Safety Instrumented System (SIS), it is mainly used to monitor process parameters, execute safety logic, and trigger safety interlock actions when necessary, thereby ensuring the safe operation of industrial processes. It is typically used to connect on-site sensors to the main safety manager system; for example, it can be connected to sensors for pressure, temperature, etc., and transmit the acquired analog data to the system.   - **Number of Channels**: It is equipped with 16 analog input channels, which are divided into 2 groups. Each group contains 8 channels and shares a common 0V.   - **Electrical Parameters**: It requires an external power supply of 30VDC. The current consumption is 3mA when there is no input loop load. The input current range is 0-25mA, and the input resistance is 250Ω±1%.   - **Signal Conversion**: It can linearly convert the on-site 0 (4)-20mA DC signal into the 0-4VDC signal required by the corresponding safety analog input module SAI-1620M.   - **Accuracy Indicators**: The measurement accuracy can reach ±0.1%, and the linearity can reach ±0.05%.   - **Communication Capability**: It is equipped with communication interfaces such as Ethernet, USB, and RS-485, enabling data transmission and interaction.   - **Operating Environment**: The operating temperature range is -20°C to 60°C, the storage temperature is -40°C to 85°C, and the relative humidity of the operating environment is 0 to 95% (non-condensing).   - **Product Certifications**: It complies with international safety standards such as SIL 3, IEC 61508, FM, and CSA.   - **Physical Characteristics**: The module dimensions are 210mm×70mm×60mm. It can be installed on a TS32/TS35×7.5 DIN rail, with a required rail length of 211mm.

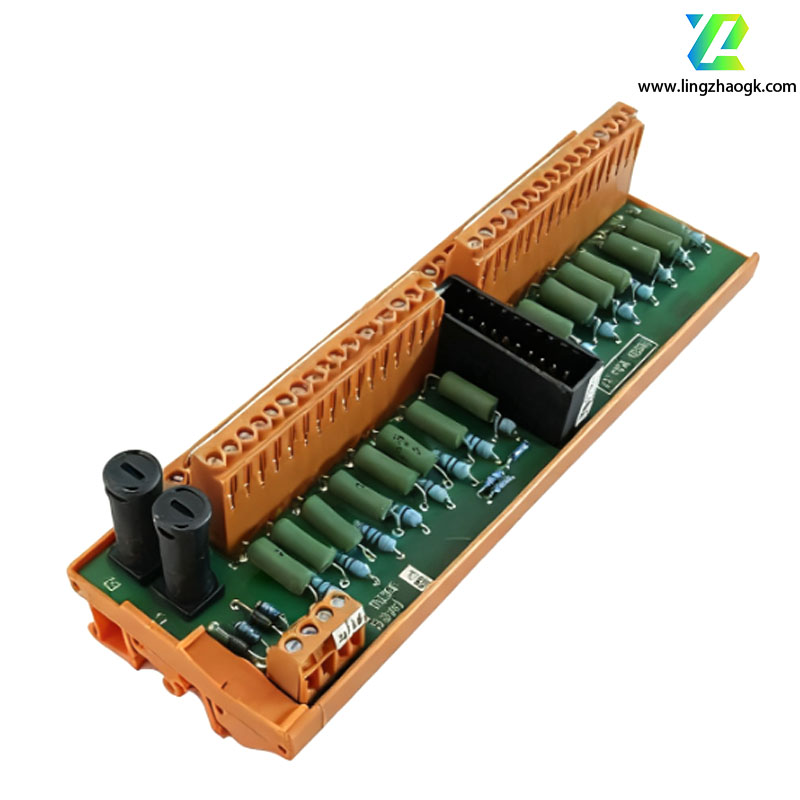

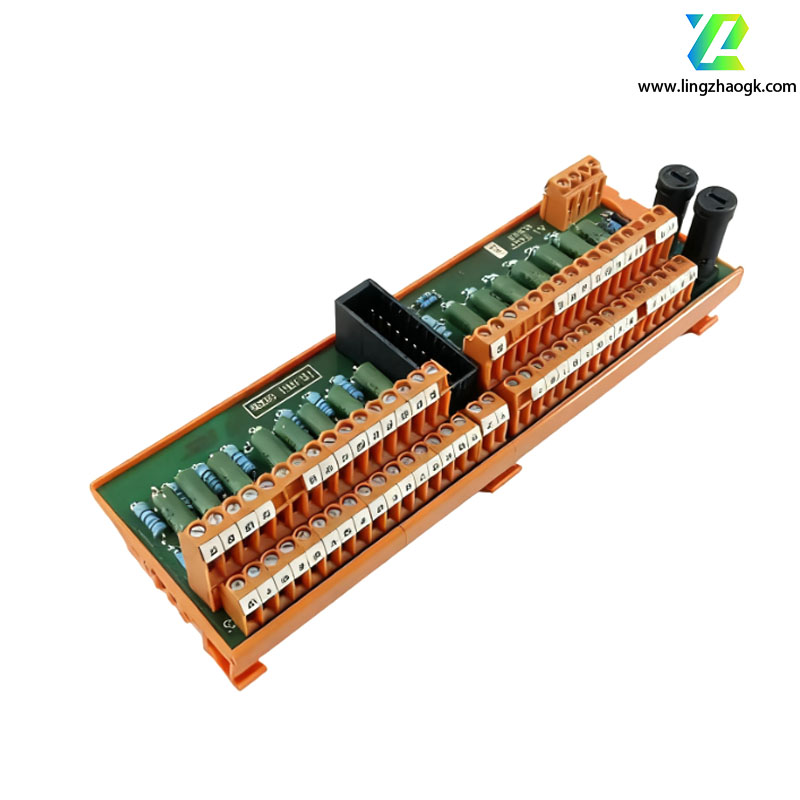

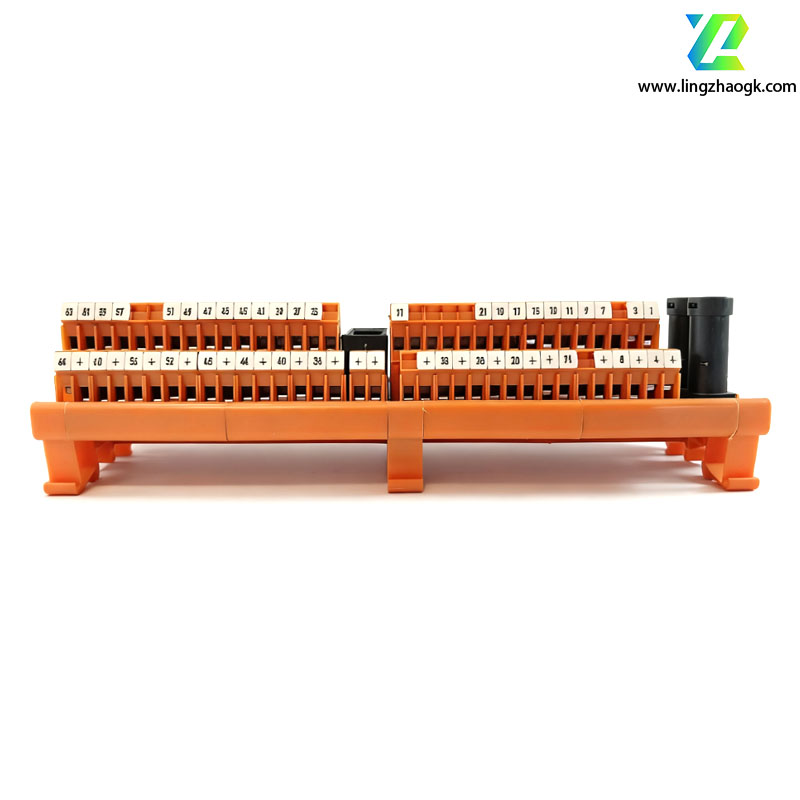

HONEYWELL FC-TSAI-1620m | Analog Input Field Termination Assembly

HONEYWELL FC-TSAI-1620m | Analog Input Field Termination Assembly
