Product introduction

Honeywell CC-PAOX01 is an analog output module belonging to Honeywell's C se

Honeywell CC-PAOX01 is an analog output module belonging to Honeywell's C series, which is compatible with Honeywell C300 controllers and other automation control equipment. The relevant introduction is as follows: - **Function and Purpose**: Its core function is to accurately and stably convert the digital signals output by the automation control system into analog signals for output. These signals are used to drive various analog actuators such as control valves and frequency converters, thereby achieving precise control of analog quantities (e.g., temperature, pressure) in industrial production processes. - **Number of Channels**: It is equipped with 16 analog output channels. Each channel can not only work independently but also have its output parameters configured separately according to actual needs, enabling simultaneous driving of multiple different analog devices. - **Output Type and Accuracy**: The output type is analog current of 4-20mA, with an output resolution of 12 bits and an output accuracy of ±0.5% full scale. The typical value of output impedance is 500Ω. - **Power Supply and Operating Environment**: The power supply voltage is 24VDC. The operating temperature range is -40°C to 85°C, the storage temperature range is -40°C to 100°C, and the humidity range is 5% to 95% (non-condensing). - **Anti-interference Performance**: It adopts 2500VDC output isolation technology, which can effectively isolate strong electromagnetic interference existing in industrial environments and ensure stable and accurate output signals. - **Communication Protocol**: It supports Honeywell C series communication protocols, enabling seamless integration and efficient communication with various controllers (such as Honeywell C300) and other automation equipment. - **Dimensions and Weight**: The module dimensions are 152mm × 152mm × 25.4mm, and the weight is approximately 0.554kg.

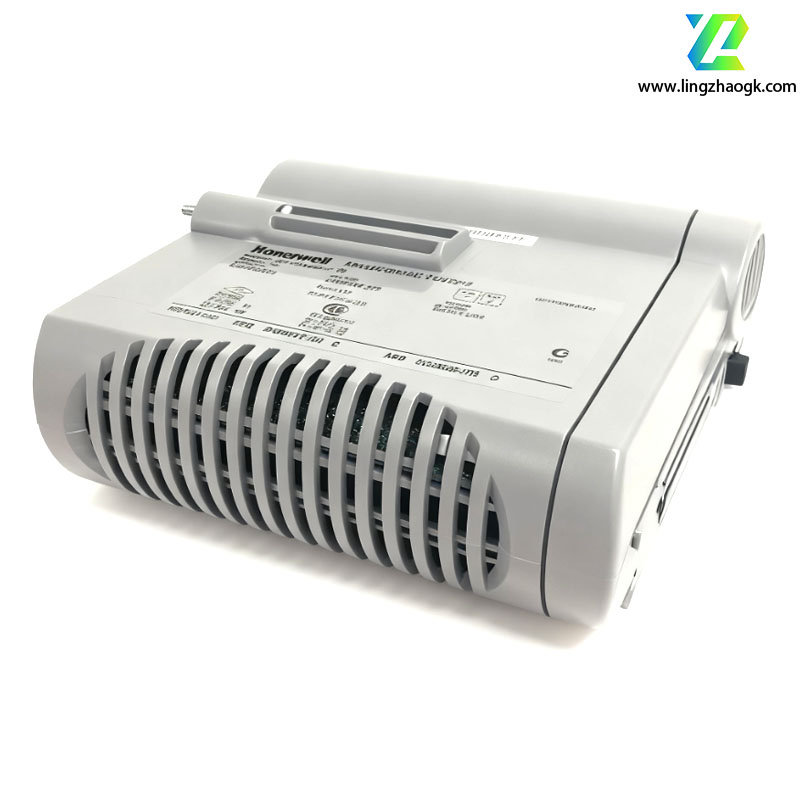

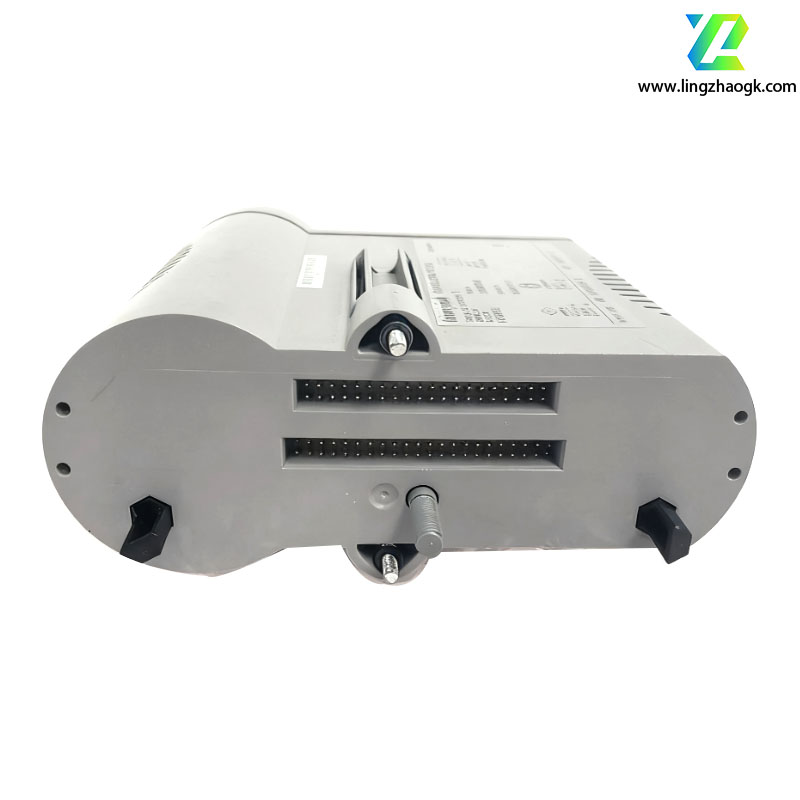

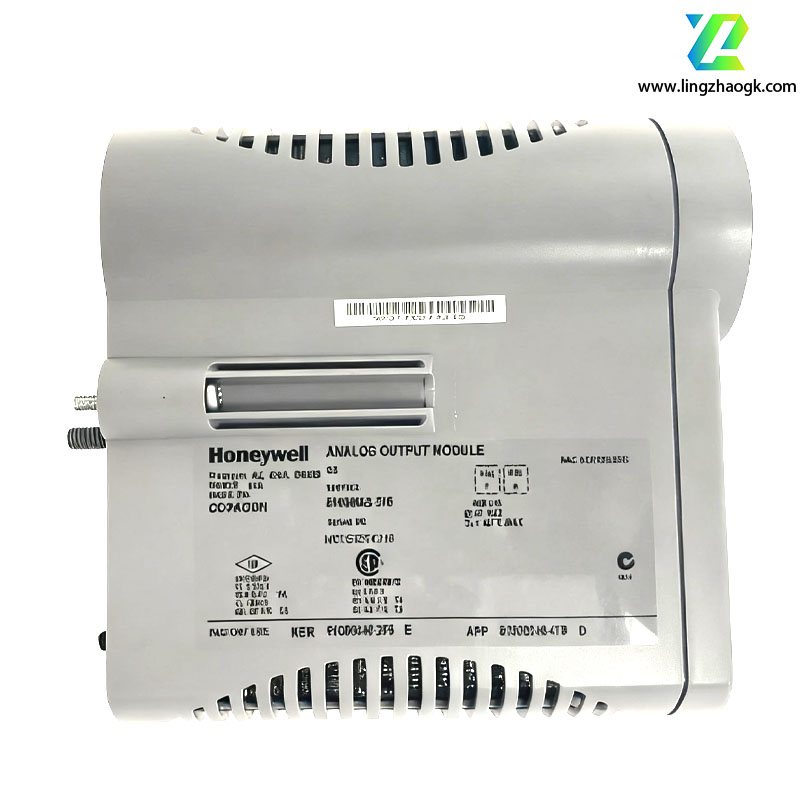

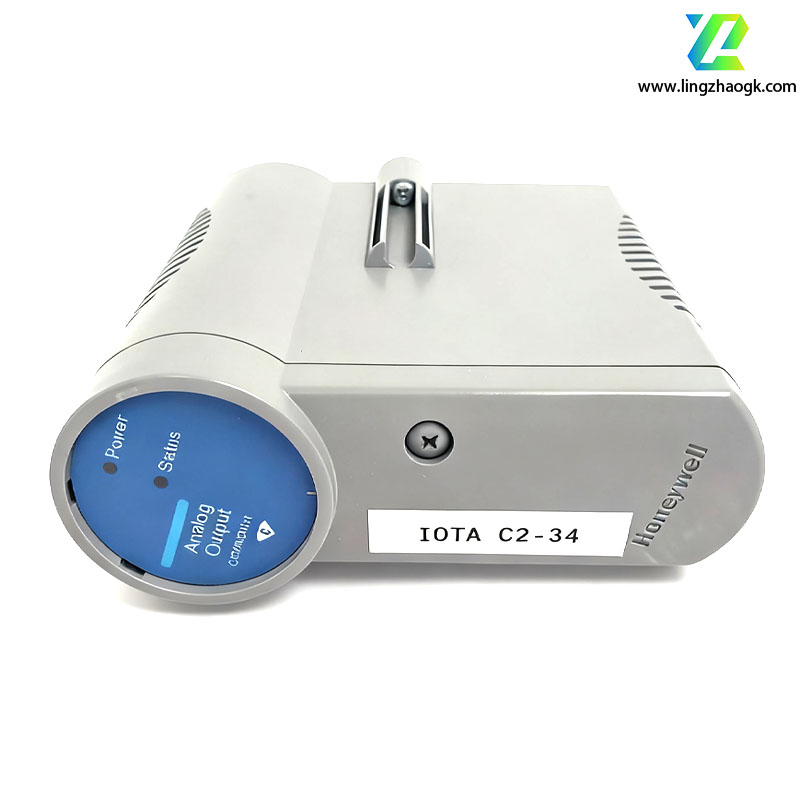

Honeywell CC-PAOX01 Analog output Module 51405039-275

Honeywell CC-PAOX01 Analog output Module 51405039-275
