Product introduction

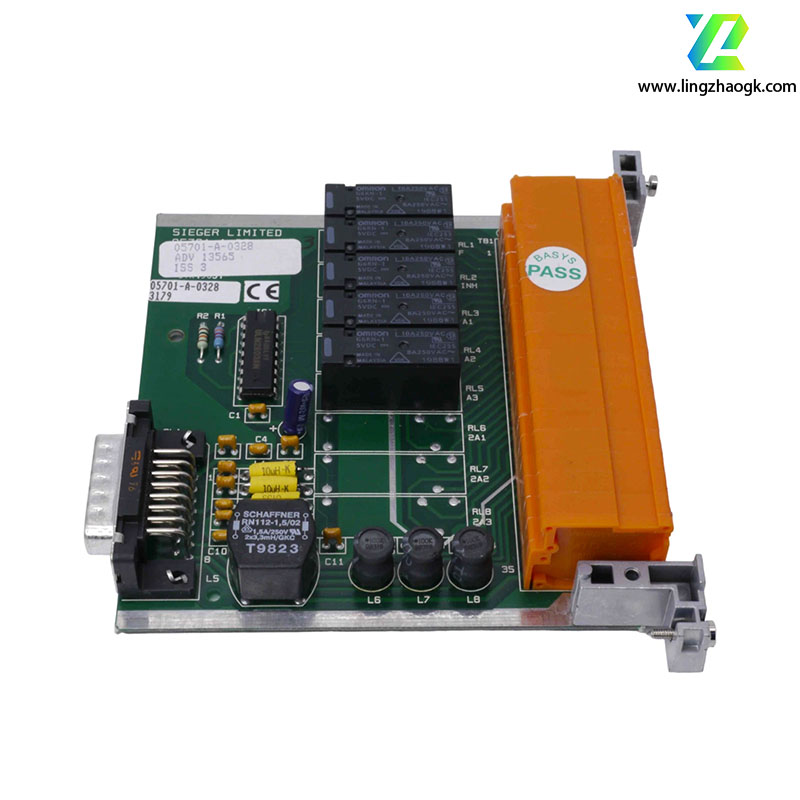

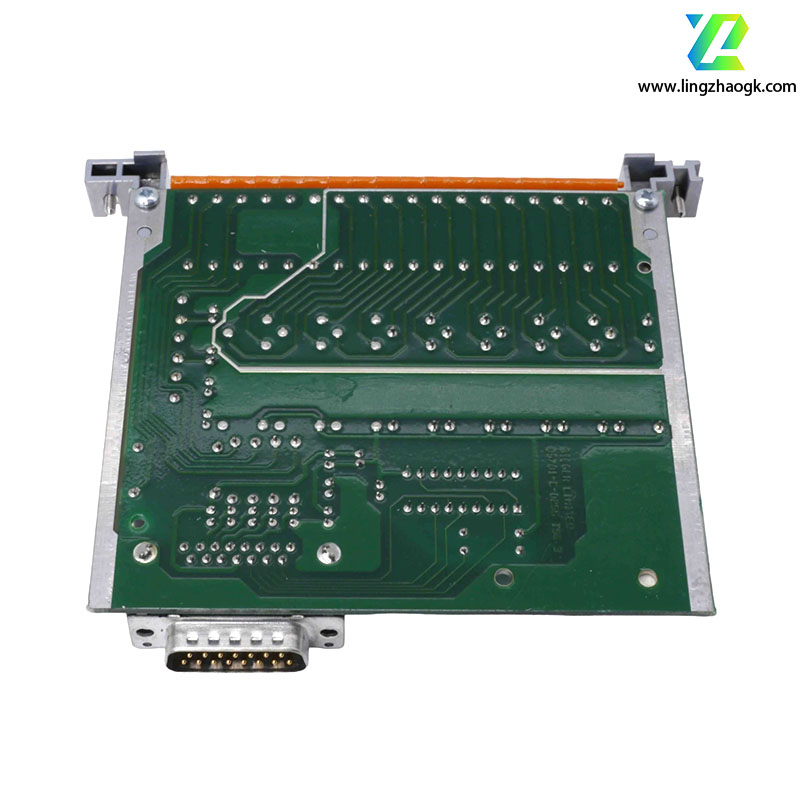

The **Honeywell 05701-A-0328** is an analytical relay card belonging to the Hone

The **Honeywell 05701-A-0328** is an analytical relay card belonging to the Honeywell System 57 series. It is mainly used for alarm control and signal output in gas detection systems. The following is its detailed introduction: - **Product Type**: A triple Single-Pole Changeover (SPCO) relay card. - **Functional Features**: It adopts a 3U card format and can provide gas detection functionality for up to 16 channels within a standard 19-inch rack. Each channel is equipped with a status indicator light, facilitating intuitive checking of the operating status of each channel. It also features easy installation and maintenance. Its relay contacts can carry a 5A non-inductive current under the conditions of 250VAC/32VDC. Additionally, the relay operation is selectable, with multiple modes such as latching/non-latching and normally energized/de-energized. - **Electrical Parameters**: The power consumption is 1.0W, and it can accept cables with a maximum specification of 2.5 square millimeters (14AWG) for connection. - **Physical and Environmental Parameters**: The operating temperature range is -5°C to +55°C, the storage temperature range is -25°C to +55°C, the operating humidity range is 20%-99%RH (non-condensing), and the weight is approximately 205g. - **Certification Status**: It has passed relevant certifications such as CE and UL. - **Application Fields**: Suitable for scenarios including gas detection in industrial and commercial settings, safety monitoring in hazardous environments, process control in critical applications, and environmental monitoring in sensitive areas.

HONEYWELL 05701-A-0328 | RELAY CARD-TRIPLE SPCO-5701

HONEYWELL 05701-A-0328 | RELAY CARD-TRIPLE SPCO-5701
