Product introduction

HIMA F3330 is an output module designed for safety-related applications, mainly

HIMA F3330 is an output module designed for safety-related applications, mainly used in industrial automation systems with high safety requirements. The following is an introduction to it: - **Number of Channels**: It has 8 output channels. Each channel can handle resistive or inductive loads up to 500mA (12W), and can also be connected to lamps with a maximum power of 4W. - **Output Types**: It supports multiple output types such as relay output and transistor output. Among them, the relay output voltage can reach 250V AC or 30V DC with an output current of 10A; the transistor output voltage is 24V DC with an output current of 1A. - **Safety Certifications**: It complies with the IEC 61508 functional safety standard, achieving the SIL 3 (Safety Integrity Level) rating, and also meets the PL e (Performance Level e) standard. - **Power Supply Requirement**: It adopts 24V DC power supply, with a power consumption of 20W. - **Electrical Characteristics**: It has short-circuit protection capability, and each output channel is short-circuit protected. The internal voltage drop is a maximum of 2V under a 500mA load, the maximum output leakage current is 350μA, and the undervoltage trip value is ≤16V. - **Response Time**: The response time is less than 1 millisecond, enabling rapid output control. - **Operating Temperature Range**: The typical operating temperature range is between -20°C and +60°C. - **Protection Level**: It has a protection level of IP20. - **Dimensions and Weight**: Its dimensions are approximately 118mm×133mm×45mm, and its weight is roughly 1.5kg.

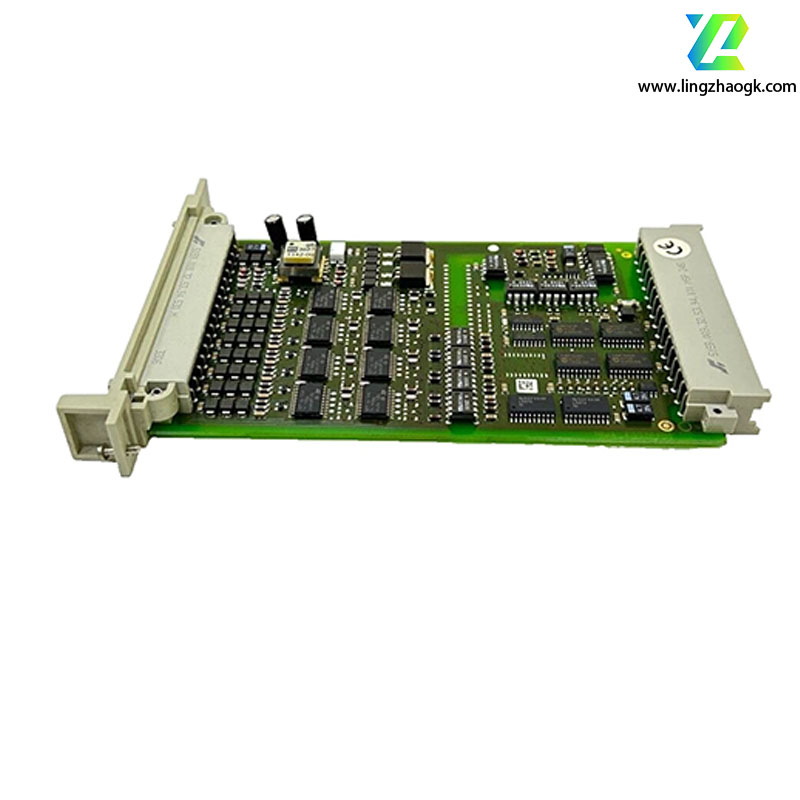

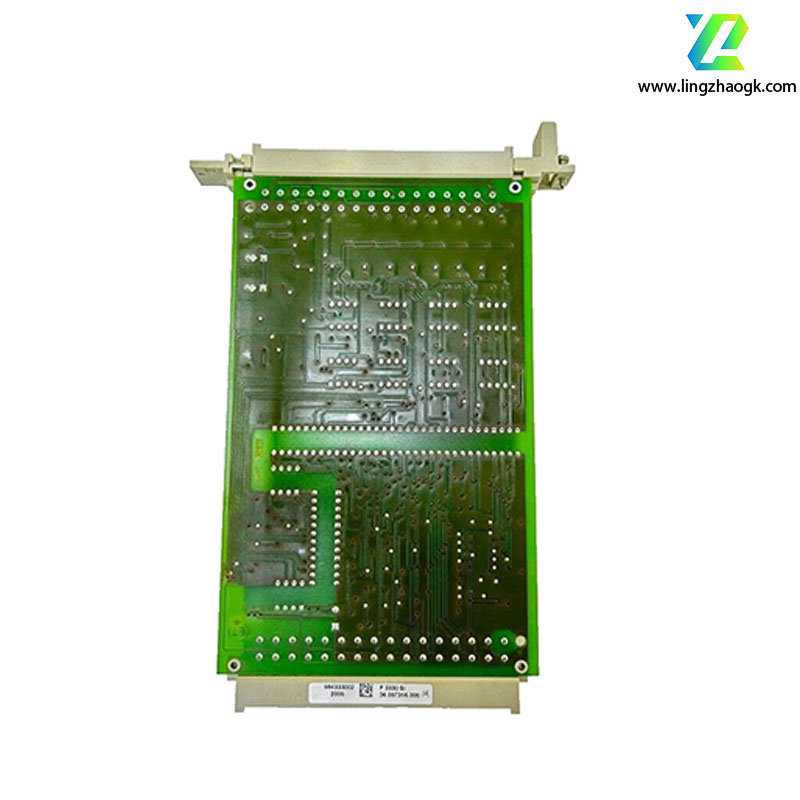

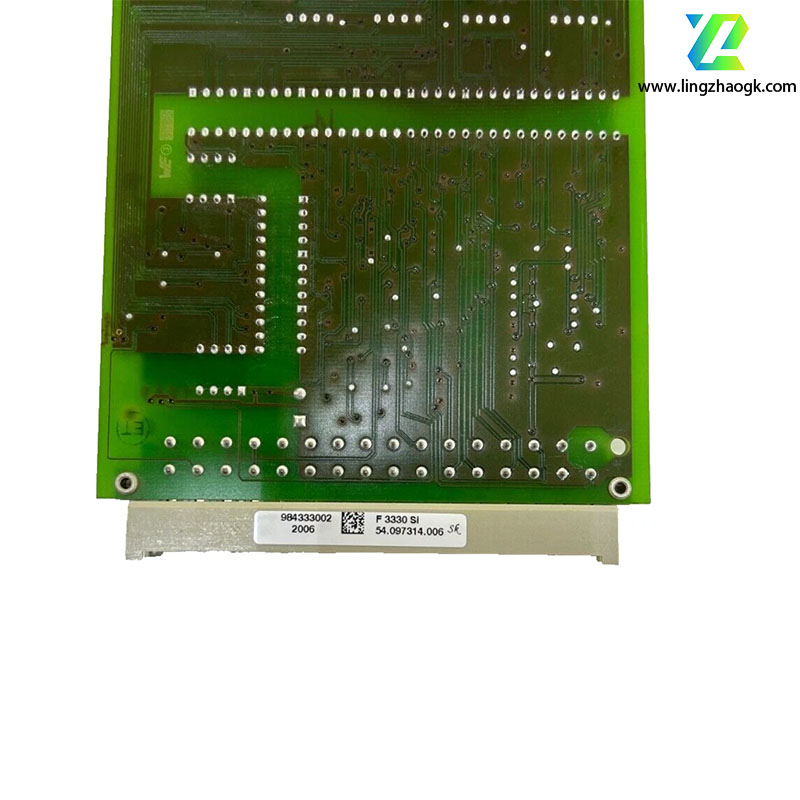

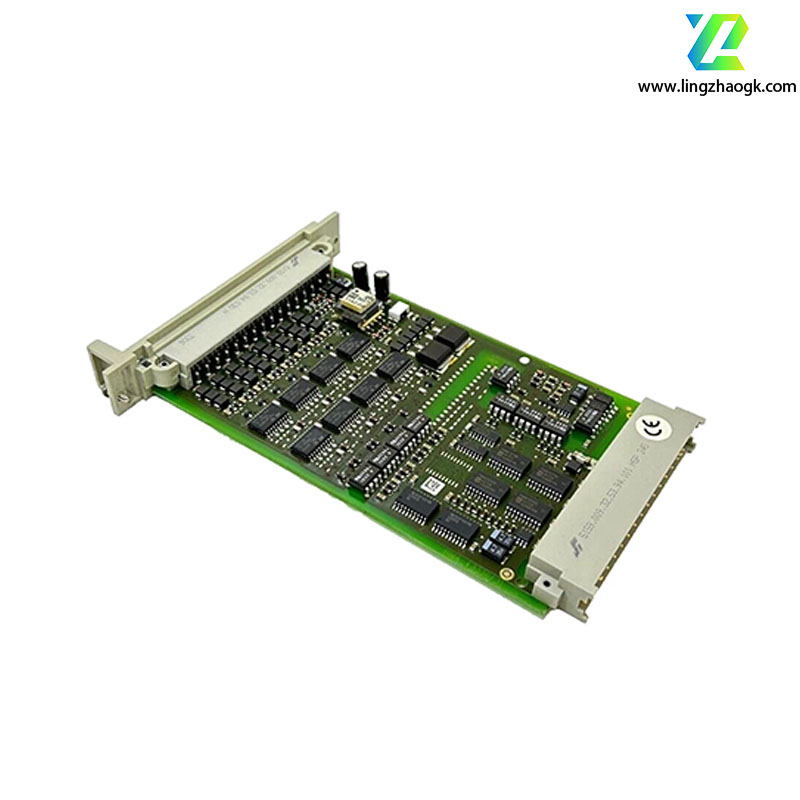

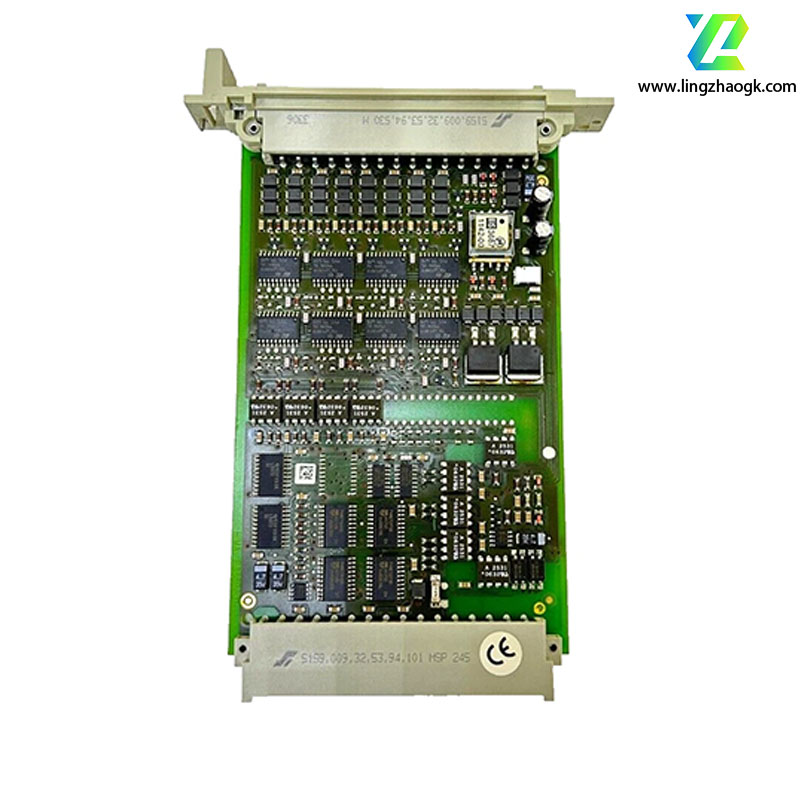

HIMA F3330 984333102 DIGITAL INPUT MODULE

HIMA F3330 984333102 DIGITAL INPUT MODULE
