Product introduction

HIMA F2DO1601 is a safety-related remote I/O controller, mainly applied in field

HIMA F2DO1601 is a safety-related remote I/O controller, mainly applied in fields such as industrial automation and process control that have high requirements for safety standards. The relevant introduction is as follows: - **Place of Origin**: Germany. - **Output Channels**: Equipped with 16 digital output channels, and the channels are in a non-electrically isolated form. - **Safety Standards**: Certified by TÜV, it complies with safety standards including SIL 3 (IEC 61508, IEC 61511, IEC 62061), Cat.4 and PL e (EN ISO 13849-1), as well as SIL 4 (EN 50126, EN 50128, EN 50129). - **Power Supply Requirements**: The operating voltage is 24VDC, with an allowable voltage fluctuation range of -15% to +20% (ripple peak ≤ 15%). The maximum current input per group is 9A; when idle, each group consumes approximately 0.2A at 24V. A 10A time-delay fuse needs to be configured externally. - **Communication Connections**: Equipped with 2 RJ-45 Ethernet interfaces, supporting the 10Base-T/100Base-TX standard, with a built-in switch function. It connects to HIMax or HIMatrix controllers via a safety Ethernet. - **Current Output Capability**: When the temperature is below 40°C, the maximum output current per channel is 2A; when the temperature is between 40°C and 60°C, the maximum output current per channel is 1A. The maximum current per group is 8A, and the total allowable current is up to 16A. The minimum load per channel is 2mA. - **Operating Temperature**: The operating temperature range is 0°C to +60°C, and the storage temperature range is -40°C to +85°C. - **Physical Characteristics**: The enclosure protection level is IP20. Without plugs, its dimensions are approximately 207mm in width, 114mm in height, and 66mm in depth, with a weight of about 0.9kg.

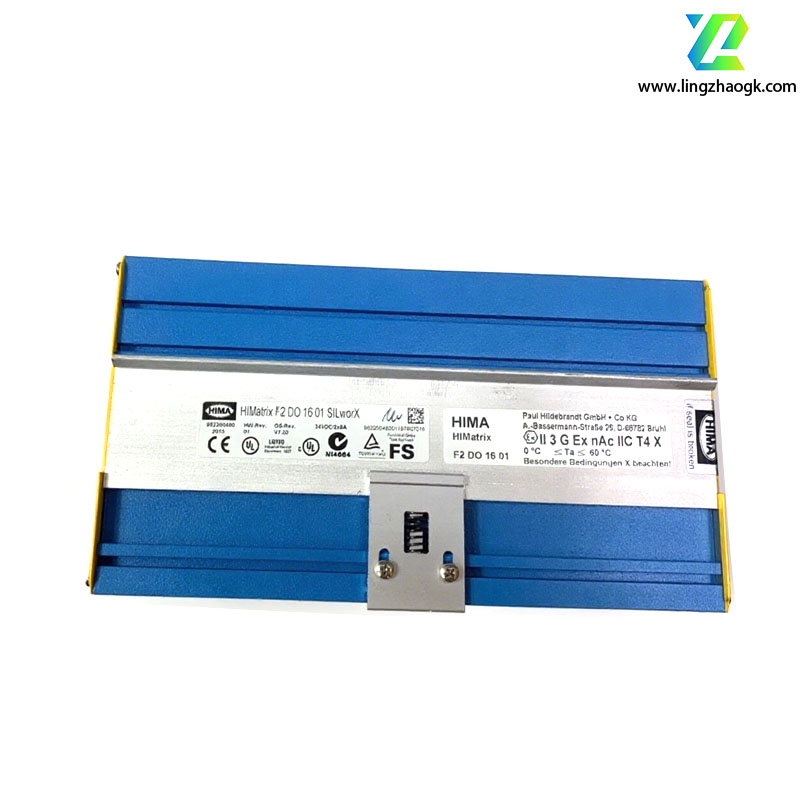

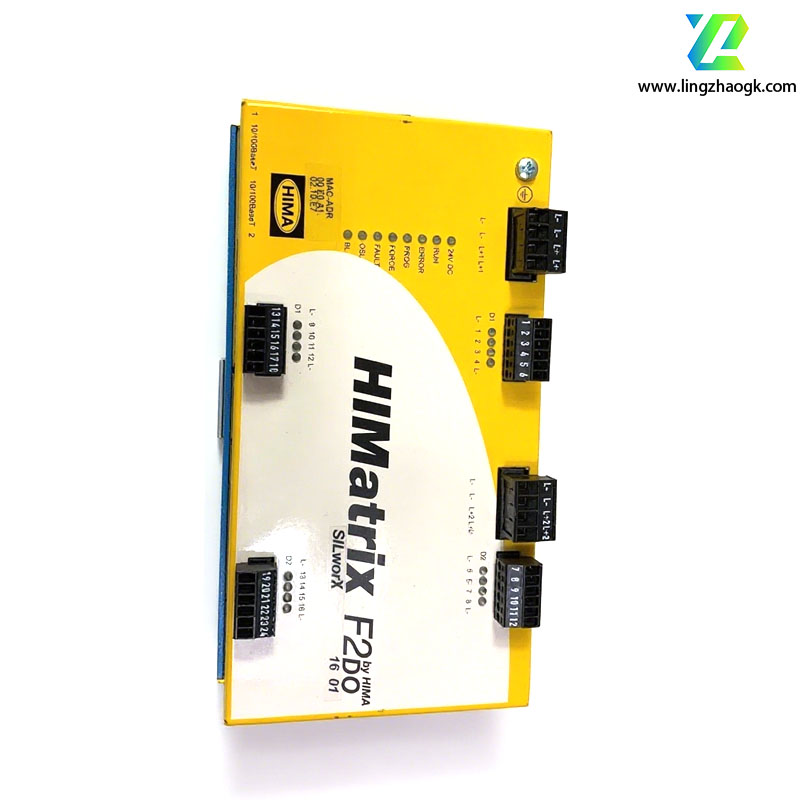

HIMA F2DO1601 Safety-related Remote I/O Modules

HIMA F2DO1601 Safety-related Remote I/O Modules
